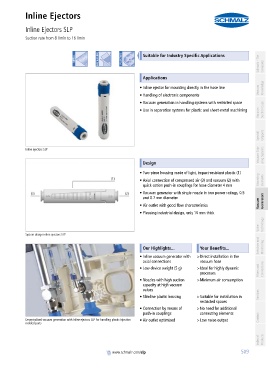

Inline Ejectors
Inline Ejectors SLP
PA01019111_inh_EN.pdf Suction rate from 8 l/min to 16 l/min PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Inline ejector for mounting directly in the hose line Vacuum Knowledge
• Handling of electronic components
• Vacuum generation in handling systems with restricted space
Vacuum
• Use in separation systems for plastic and sheet-metal machining Suction Cups

Special Grippers

Vacuum Grip- ping Systems
Inline ejectors SLP
container
Design

• Two-piece housing made of light, impact-resistant plastic (1)
• Axial connection of compressed air (3) and vacuum (2) with Mounting Elements
quick-action push-in couplings for hose diameter 4 mm
• Vacuum generator with single nozzle in two power ratings, 0.5
and 0.7 mm diameter Generators
• Air outlet with good flow characteristics Vacuum
• Pleasing industrial design, only 10 mm thick

Valve Technology

System design inline ejectors SLP
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Inline vacuum generator with >Direct installation in the
axial connections vacuum hose
• Low device weight (5 g) >Ideal for highly dynamic Filters and Connections
processes
• Nozzles with high suction >Minimum air consumption
capacity at high vacuum
values
• Slimline plastic housing >Suitable for installation in Services
restricted spaces
• Connection by means of >No need for additional
push-in couplings connecting elements
Decentralized vacuum generation with inline ejectors SLP for handling plastic injection • Air outlet optimized >Low noise output Contact
molded parts

Index of Products

container
container 509
www.schmalz.com/slp
