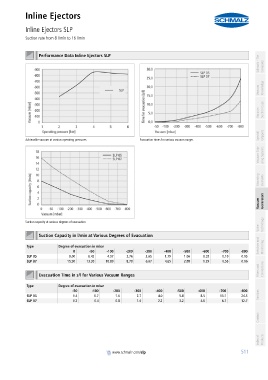

Inline Ejectors
Inline Ejectors SLP
PA01019111_inh_EN.pdf Suction rate from 8 l/min to 16 l/min PA01019111_inh_EN.pdf

container

container Performance Data Inline Ejectors SLP Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
Achievable vacuum at various operating pressures Evacuation times for various vacuum ranges
container
Vacuum Grip- ping Systems

Mounting Elements

Vacuum Generators

Suction capacity at various degrees of evacuation Technology
Valve
container
Suction Capacity in l/min at Various Degrees of Evacuation
Switches and
container
Type Degree of evacuation in mbar Monitoring
0 -50 -100 -200 -300 -400 -500 -600 -700 -800
SLP 05 8.00 6.42 4.97 3.76 2.65 1.79 1.06 0.32 0.10 0.05
SLP 07 15.90 13.30 10.89 8.70 6.67 4.65 2.88 1.29 0.55 0.06
Filters and Connections
container
Evacuation Time in s/l for Various Vacuum Ranges

container
Type Degree of evacuation in mbar
-50 -100 -200 -300 -400 -500 -600 -700 -800
SLP 05 0.4 0.7 1.6 2.7 4.0 5.8 8.5 13.1 24.5 Services
SLP 07 0.2 0.4 0.8 1.4 2.2 3.2 4.6 6.7 12.7

Contact

Index of Products

container
www.schmalz.com/slp
