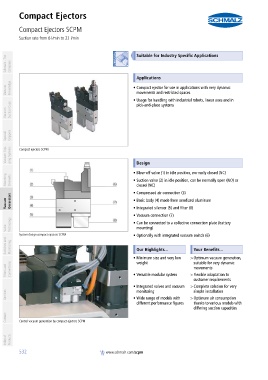

Compact Ejectors
Compact Ejectors SCPM
PA01019111_inh_EN.pdf Suction rate from 6 l/min to 23 l/min PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Compact ejector for use in applications with very dynamic
movements and restricted spaces
• Usage for handling with industrial robots, linear axes and in
pick-and-place systems
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems Compact ejectors SCPM Design

container

• Blow-off valve (1) in idle position, normally closed (NC)
Mounting Elements • Suction valve (2) in idle position, can be normally open (NO) or
closed (NC)
• Compressed air connection (3)
Vacuum Generators • Basic body (4) made from anodized aluminum

• Integrated silencer (5) and filter (8)
• Vacuum connection (7)
Valve Technology • Can be connected to a collective connection plate (battery
mounting)
System design compact ejectors SCPM • Optionally with integrated vacuum switch (6)
Switches and Monitoring container Our Highlights... Your Benefits...

• Minimum size and very low >Optimum vacuum generation,
weight
suitable for very dynamic
Filters and Connections • Versatile modular system >Flexible adaptation to
movements
customer requirements
• Integrated valves and vacuum >Complete solution for very
monitoring
simple installation
Services • Wide range of models with >Optimum air consumption
different performance figures thanks to various models with
differing suction capacities
Contact Central vacuum generation by compact ejectors SCPM

Index of Products

532 www.schmalz.com/scpm
