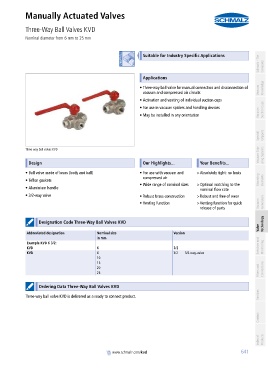

Manually Actuated Valves
Three-Way Ball Valves KVD
PA01019111_inh_EN.pdf Nominal diameter from 6 mm to 25 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Three-way ball valve for manual connection and disconnection of Vacuum Knowledge
vacuum and compressed air circuits
• Activation and venting of individual suction cups
• For use in vacuum spiders and handling devices Suction Cups
• May be installed in any orientation Vacuum

Special Grippers

Vacuum Grip- ping Systems
Three-way ball valves KVD
container
Design Our Highlights... Your Benefits...

• Ball valve made of brass (body and ball) • For use with vacuum and >Absolutely tight: no leaks
compressed air
• Teflon gaskets Mounting Elements
• Wide range of nominal sizes >Optimal matching to the
• Aluminium handle nominal flow rate
• 3/2-way valve • Robust brass construction >Robust and free of wear
• Venting function >Venting function for quick Vacuum Generators
release of parts

container
Designation Code Three-Way Ball Valves KVD Technology
Valve
container
Abbreviated designation Nominal size Version
in mm
Example KVD 6 3/2:
KVD 6 3/2 Switches and Monitoring
KVD 6 3/2 3/2-way-valve
10
15
20 Filters and Connections
25

container
Ordering Data Three-Way Ball Valves KVD
Services
Three-way ball valve KVD is delivered as a ready to connect product.
container

Contact

Index of Products

container
www.schmalz.com/kvd
