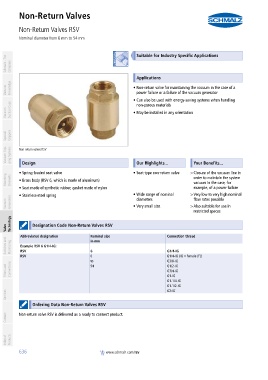

Non-Return Valves
Non-Return Valves RSV
PA01019111_inh_EN.pdf Nominal diameter from 6 mm to 54 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Non-return valve for maintaining the vacuum in the case of a
power failure or a failure of the vacuum generator
• Can also be used with energy-saving systems when handling
non-porous materials
Vacuum Suction Cups • May be installed in any orientation

Special Grippers

Vacuum Grip- ping Systems Non-return valves RSV Our Highlights... Your Benefits...

container
Design

• Spring-loaded seat valve • Seat-type non-return valve >Closure of the vacuum line in
Mounting Elements • Brass body (RSV 6, which is made of aluminum) order to maintain the system
vacuum in the case, for
example, of a power failure
• Seat made of synthetic rubber, gasket made of nylon • Wide range of nominal >Very low to very high nominal
• Stainless-steel spring
flow rates possible
diameters
Vacuum Generators • Very small size >Also suitable for use in
restricted spaces

Valve Technology container Designation Code Non-Return Valves RSV

container
Abbreviated designation Nominal size Connection thread
Switches and Monitoring Example RSV 6 G1/4-IG: in mm

RSV
G1/4-IG (IG = female (F))
RSV 6 6 to G1/4-IG
G3/8-IG
Filters and Connections 54 G1/2-IG
G3/4-IG
G1-IG
G1-1/4-IG
G1-1/2-IG
Services G2-IG

container
Ordering Data Non-Return Valves RSV
Contact Non-return valve RSV is delivered as a ready to connect product.
container

Index of Products

636 www.schmalz.com/rsv
