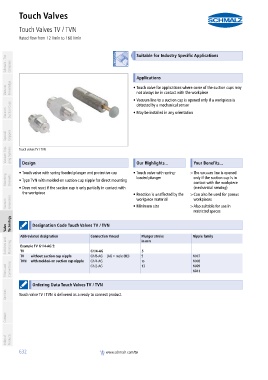

Page 632 - Schmalz - Vacuum Components

pct_142_n2310287.fm Seite 632 Donnerstag, 25. Februar 2016 6:30 18
PA01019111_inh_EN.pdf
Touch Valves
Touch Valves TV / TVN
PA01019111_inh_EN.pdf Rated flow from 12 l/min to 160 l/min PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Touch valve for applications where some of the suction cups may
not always be in contact with the workpiece
• Vacuum line to a suction cup is opened only if a workpiece is
detected by a mechanical sensor
Vacuum Suction Cups • May be installed in any orientation

Special Grippers

Vacuum Grip- ping Systems Touch valves TV / TVN Our Highlights... Your Benefits...

container
Design

• Touch valve with spring-loaded plunger and protective cap • Touch valve with spring- >The vacuum line is opened
Mounting Elements • Type TVN with molded-on suction-cup nipple for direct mounting loaded plunger only if the suction cup is in
contact with the workpiece
• Does not react if the suction cup is only partially in contact with (mechanical sensing)
the workpiece • Reaction is unaffected by the >Can also be used for porous
workpieces
workpiece material
Vacuum Generators • Minimum size >Also suitable for use in
restricted spaces

Valve Technology container Designation Code Touch Valves TV / TVN

container
Abbreviated designation Connection thread Plunger stroke Nipple family
Switches and Monitoring Example TV G1/4-AG 5: in mm

TV
G1/8-AG (AG = male (M))
TV without suction cup nipple G1/4-AG 5 5 to N007
G1/4-AG
N008
TVN with molded-on suction cup nipple
Filters and Connections G1/2-AG 13 N009
N041
container
Ordering Data Touch Valves TV / TVN
Services Touch valve TV / TVN is delivered as a ready to connect product.
container

Contact

Index of Products

632 www.schmalz.com/tv
