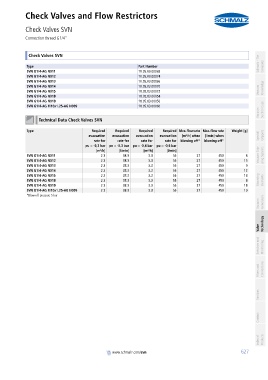

Page 627 - Schmalz - Vacuum Components

EN_Ventile.book Seite 627 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Check Valves and Flow Restrictors
Check Valves SVN
PA01019111_inh_EN.pdf Connection thread G1/4" PA01019111_inh_EN.pdf

container

container Check Valves SVN Schmalz - The
Type Part Number Company
SVN G1/4-AG N011 10.05.03.00068
SVN G1/4-AG N012 10.05.03.00074
SVN G1/4-AG N013 10.05.03.00066
SVN G1/4-AG N014 10.05.03.00070 Knowledge
SVN G1/4-AG N015 10.05.03.00072 Vacuum
SVN G1/4-AG N018 10.05.03.00054
SVN G1/4-AG N019 10.05.03.00056
SVN G1/4-AG M10x1.25-AG N009 10.05.03.00060
Vacuum Suction Cups
container
Technical Data Check Valves SVN

container
Type Required Required Required Required Max. flow rate Max. flow rate Weight [g]
evacuation evacuation evacuation evacuation [m³/h] when [l/min] when Special Grippers
rate for rate for rate for rate for blowing off* blowing off*
pu = -0,3 bar pu = -0,3 bar pu = -0,6 bar pu = -0,6 bar
[m³/h] [l/min] [m³/h] [l/min]
SVN G1/4-AG N011 2.3 38.3 3.3 55 27 450 8 Vacuum Grip- ping Systems
SVN G1/4-AG N012 2.3 38.3 3.3 55 27 450 15
SVN G1/4-AG N013 2.3 38.3 3.3 55 27 450 9
SVN G1/4-AG N014 2.3 38.3 3.3 55 27 450 12
SVN G1/4-AG N015 2.3 38.3 3.3 55 27 450 18
SVN G1/4-AG N018 2.3 38.3 3.3 55 27 450 8 Mounting Elements
SVN G1/4-AG N019 2.3 38.3 3.3 55 27 450 18
SVN G1/4-AG M10x1.25-AG N009 2.3 38.3 3.3 55 27 450 10
*Blow-off pressure 5 bar
Vacuum Generators

Valve Technology

Switches and Monitoring

Filters and Connections

Services

Contact

Index of Products

container
container 627
www.schmalz.com/svn
