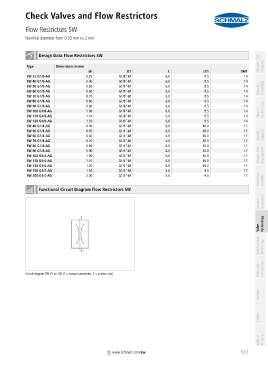

Check Valves and Flow Restrictors
Flow Restrictors SW
PA01019111_inh_EN.pdf Nominal diameter from 0.25 mm to 2 mm PA01019111_inh_EN.pdf

container

container Design Data Flow Restrictors SW Schmalz - The
Type Dimensions in mm Company
dn G1 L LG1 SW1
SW 25 G1/8-AG 0.25 G1/8"-M 6.0 9.5 14
SW 40 G1/8-AG 0.40 G1/8"-M 6.0 9.5 14
SW 50 G1/8-AG 0.50 G1/8"-M 6.0 9.5 14 Knowledge
SW 60 G1/8-AG 0.60 G1/8"-M 6.0 9.5 14 Vacuum
SW 70 G1/8-AG 0.70 G1/8"-M 6.0 9.5 14
SW 80 G1/8-AG 0.80 G1/8"-M 6.0 9.5 14
SW 90 G1/8-AG 0.90 G1/8"-M 6.0 9.5 14
SW 100 G1/8-AG 1.00 G1/8"-M 6.0 9.5 14 Vacuum Suction Cups
SW 110 G1/8-AG 1.10 G1/8"-M 6.0 9.5 14
SW 120 G1/8-AG 1.20 G1/8"-M 6.0 9.5 14
SW 40 G1/4-AG 0.40 G1/4"-M 6.0 10.0 17
SW 50 G1/4-AG 0.50 G1/4"-M 6.0 10.0 17
SW 60 G1/4-AG 0.60 G1/4"-M 6.0 10.0 17 Special Grippers
SW 70 G1/4-AG 0.70 G1/4"-M 6.0 10.0 17
SW 80 G1/4-AG 0.80 G1/4"-M 6.0 10.0 17
SW 90 G1/4-AG 0.90 G1/4"-M 6.0 10.0 17
SW 100 G1/4-AG 1.00 G1/4"-M 6.0 10.0 17 Vacuum Grip- ping Systems
SW 110 G1/4-AG 1.10 G1/4"-M 6.0 10.0 17
SW 120 G1/4-AG 1.20 G1/4"-M 6.0 10.0 17
SW 150 G1/4-AG 1.50 G1/4"-M 5.0 9.0 17
Mounting Elements
SW 200 G1/4-AG 2.00 G1/4"-M 5.0 9.0 17

container
Functional Circuit Diagram Flow Restrictors SW
Vacuum Generators
container

Valve Technology

Switches and Monitoring

Filters and Connections

Circuit diagram SW 25 to 200 (1 = vacuum generator; 2 = suction cup)

Services

Contact

Index of Products

container
container 631
www.schmalz.com/sw
