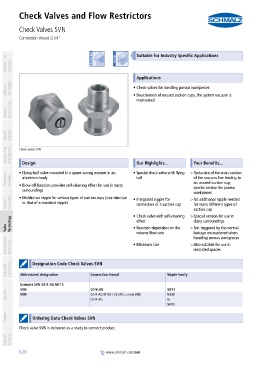

Page 626 - Schmalz - Vacuum Components

EN_Ventile.book Seite 626 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Check Valves and Flow Restrictors
Check Valves SVN
PA01019111_inh_EN.pdf Connection thread G1/4" PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Check valves for handling porous workpieces
• Deactivation of unused suction cups, the system vacuum is
maintained
Vacuum Suction Cups

Special Grippers

Vacuum Grip- ping Systems Check valves SVN Our Highlights... Your Benefits...

container
Design

• Flying-ball valve mounted in a space-saving manner in an • Special check valve with flying >Reduction of the cross-section
Mounting Elements aluminum body ball of the vacuum line leading to
an unused suction cup;
• Blow-off function provides self-cleaning effect for use in dusty
surroundings special version for porous
workpieces
Vacuum Generators • Molded-on nipple for various types of suction cups (size identical • Integrated nipple for >No additional nipple needed
to that of a standard nipple)
for many different types of
connection of a suction cup
suction cup
• Check valve with self-cleaning >Special version for use in
effect
dusty surroundings
Valve Technology • Reaction dependent on the >Not triggered by the normal
volume flow rate leakage encountered when
handling porous workpieces
Switches and Monitoring • Minimum size >Also suitable for use in
restricted spaces

container Designation Code Check Valves SVN
Filters and Connections container Abbreviated designation Connection thread Nipple family

Example SVN G1/4-AG N011: G1/4-AG N011
SVN
Services SVN G1/4-AG M10x1.25 (AG = male (M)) N009
to
G1/4-AG
N019
Contact container Ordering Data Check Valves SVN

Check valve SVN is delivered as a ready to connect product.
container
Index of Products

626 www.schmalz.com/svn
