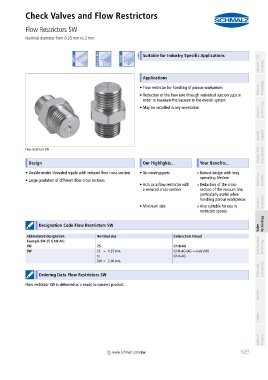

Check Valves and Flow Restrictors
Flow Restrictors SW
PA01019111_inh_EN.pdf Nominal diameter from 0.25 mm to 2 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Flow restrictor for handling of porous workpieces Vacuum Knowledge
• Reduction of the flow rate through individual suction cups in
order to maintain the vacuum in the overall system
• May be installed in any orientation Suction Cups
Vacuum

Special Grippers

Vacuum Grip- ping Systems
Flow restrictors SW
container
Design Our Highlights... Your Benefits...

• Double-ended threaded nipple with reduced flow cross section • No moving parts >Robust design with long
operating lifetime
• Large gradation of different flow cross sections Mounting Elements
• Acts as a flow restrictor with >Reduction of the cross-
a reduced cross-section section of the vacuum line,
particularly useful when
handling porous workpieces Generators
• Minimum size >Also suitable for use in Vacuum
restricted spaces

container
Valve
Designation Code Flow Restrictors SW Technology
container
Abbreviated designation Nominal size Connection thread
Example SW 25 G1/8-AG:
SW 25 G1/8-AG Switches and Monitoring
SW 25 = 0.25 mm G1/8-AG (AG = male (M))
to G1/4-AG
200 = 2.00 mm
Filters and Connections
container
Ordering Data Flow Restrictors SW

Flow restrictor SW is delivered as a ready to connect product.
container
