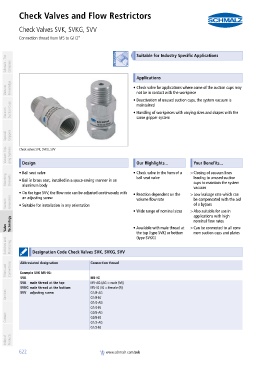

Page 622 - Schmalz - Vacuum Components

EN_Ventile.book Seite 622 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Check Valves and Flow Restrictors
Check Valves SVK, SVKG, SVV
PA01019111_inh_EN.pdf Connection thread from M5 to G1/2" PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Check valve for applications where some of the suction cups may
not be in contact with the workpiece
• Deactivation of unused suction cups, the system vacuum is
maintained
Vacuum Suction Cups • Handling of workpieces with varying sizes and shapes with the
same gripper system

Special Grippers

Vacuum Grip- ping Systems Check valves SVK, SVKG, SVV Our Highlights... Your Benefits...

container
Design

• Ball seat valve • Check valve in the form of a >Closing of vacuum lines
Mounting Elements • Ball in brass seat, installed in a space-saving manner in an ball seat valve leading to unused suction
cups to maintain the system
aluminum body
vacuum
• On the type SVV, the flow rate can be adjusted continuously with • Reaction dependent on the >Low leakage rate which can
an adjusting screw
Vacuum Generators • Suitable for installation in any orientation volume flow rate be compensated with the aid
of a bypass
• Wide range of nominal sizes >Also suitable for use in
applications with high
nominal flow rates
Valve Technology • Available with male thread at >Can be connected to all com-
the top (type SVK) or bottom mon suction cups and plates
(type SVKG)
Switches and Monitoring container Designation Code Check Valves SVK, SVKG, SVV

container Abbreviated designation Connection thread
Filters and Connections Example SVK M5-IG:

SVK M5-IG
SVK male thread at the top M5-AG (AG = male (M))
SVKG male thread at the bottom M5-IG (IG = female (F))
Services SVV adjusting screw G1/8-AG
G1/8-IG
G1/4-AG
G1/4-IG
Contact G3/8-AG
G3/8-IG
G1/2-AG
G1/2-IG
Index of Products

622 www.schmalz.com/svk
