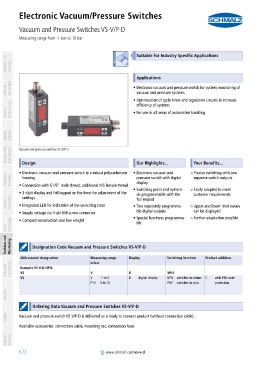

Page 672 - Schmalz - Vacuum Components

EN_Ventile.book Seite 672 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Electronic Vacuum/Pressure Switches
Vacuum and Pressure Switches VS-V/P-D
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Electronic vacuum and pressure switch for system monitoring of
vacuum and pressure systems
• Optimization of cycle times and regulation circuits to increase
efficiency of systems
Vacuum Suction Cups • For use in all areas of automated handling

Special Grippers

Vacuum Grip- ping Systems Vacuum and pressure switches VS-V/P-D Our Highlights... Your Benefits...

container
Design

• Electronic vacuum and pressure switch in a robust polycarbonate • Electronic vacuum and >Precise switching with two
Mounting Elements housing pressure switch with digital separate switch outputs
display
• Connection with G1/8" male thread; additional M5 female thread
• Switching point and hystere- >Easily adapted to meet
• 3-digit display and foil keypad on the front for adjustment of the sis programmable with the customer requirements
settings
foil keypad
Vacuum Generators • Integrated LED for indication of the switching state • Two separately programma- >Upper and lower limit values
ble digital outputs can be displayed
• Supply voltage via 4-pin M8 screw connector • Special functions programma- >Further adaptation possible

Valve Technology • Compact construction and low weight ble

Switches and Monitoring container Designation Code Vacuum and Pressure Switches VS-V/P-D

container
Abbreviated designation Measuring range Display Switching function Product addition
in bar
Filters and Connections Example VS-V-D-NPN: V D NPN
VS
VS V -1 to 0 D digital display NPN switches to minus C with PIN-code
P10 0 to 10 PNP switches to plus protection

Services

container
Ordering Data Vacuum and Pressure Switches VS-V/P-D
Contact Vacuum and pressure switch VS-V/P-D is delivered as a ready to connect product (without connection cable).
container
Available accessories: connection cable, mounting set, connection hose

Index of Products

672 www.schmalz.com/vs-v-d
