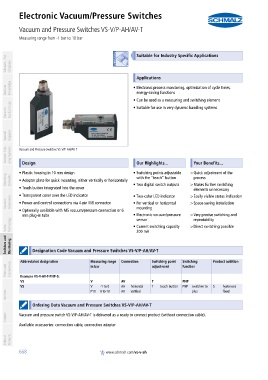

Page 668 - Schmalz - Vacuum Components

EN_Ventile.book Seite 668 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Electronic Vacuum/Pressure Switches
Vacuum and Pressure Switches VS-V/P-AH/AV-T
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Electronic process monitoring, optimization of cycle times,
energy-saving functions
• Can be used as a measuring and switching element
Vacuum Suction Cups • Suitable for use in very dynamic handling systems

Special Grippers

Vacuum Grip- ping Systems Vacuum and Pressure Switches VS-V/P-AH/AV-T Our Highlights... Your Benefits...

container
Design

• Plastic housing in 10 mm design • Switching points adjustable >Quick adjustment of the
Mounting Elements • Adapter plate for quick mounting, either vertically or horizontally with the "teach" button process

• Teach button integrated into the cover • Two digital switch outputs >Makes further switching
elements unnecessary
• Transparent cover over the LED indicator
Vacuum Generators • Power and control connections via 4-pin M8 connector • Two-color LED indicator >Easily visible status indication
• For vertical or horizontal
>Space-saving installation
• Optionally available with M5 vacuum/pressure connection or 6 mounting
mm plug-in tube • Electronic vacuum/pressure >Very precise switching and
sensor
repeatability
Valve Technology • Current switching capacity >Direct switching possible
200 mA
Switches and Monitoring container Designation Code Vacuum and Pressure Switches VS-V/P-AH/AV-T

container Abbreviated designation Measuring range Connection Switching point Switching Product addition
Filters and Connections in bar adjustment function

Example VS-V-AV-T-PNP-S:
VS V AV T PNP
VS V -1 to 0 AH horiontal T teach button PNP switches to S hysteresis
Services P10 0 to 10 AV vertical plus fixed

container
Ordering Data Vacuum and Pressure Switches VS-V/P-AH/AV-T
Contact Vacuum and pressure switch VS-V/P-AH/AV-T is delivered as a ready to connect product (without connection cable).
container
Available accessories: connection cable, connection adapter

Index of Products

668 www.schmalz.com/vs-v-ah
