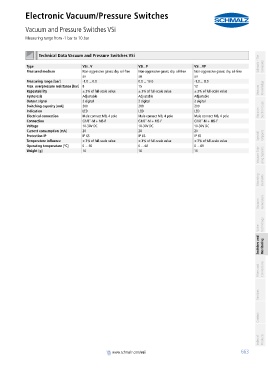

Electronic Vacuum/Pressure Switches
Vacuum and Pressure Switches VSi
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container

container Technical Data Vacuum and Pressure Switches VSi Schmalz - The
Type VSi...V VSi...P VSi...VP Company
Measured medium Non-aggressive gases; dry, oil-free Non-aggressive gases; dry, oil-free Non-aggressive gases; dry, oil-free
air air air
Measuring range [bar] -1.0 ... 0.0 0.0 ... 10.0 -1.0 ... 8.0
Max. overpressure resistance [bar] 8 15 12 Knowledge
Repeatability ± 3% of full-scale value ± 3% of full-scale value ± 3% of full-scale value Vacuum
Hysteresis Adjustable Adjustable Adjustable
Output signal 2 digital 2 digital 2 digital
Switching capacity [mA] 200 200 200
Indication LED LED LED Vacuum Suction Cups
Electrical connection Male connect M8, 4 pole Male connect M8, 4 pole Male connect M8, 4 pole
Connection G1/8"-M + M5-F G1/8"-M + M5-F G1/8"-M + M5-F
Voltage 10-30V DC 10-30V DC 10-30V DC
Current consumption [mA] 20 20 20
Protection IP IP 65 IP 65 IP 65 Special Grippers
Temperature influence ± 3% of full-scale value ± 3% of full-scale value ± 3% of full-scale value
Operating temperature [°C] 0 ... 60 0 ... 60 0 ... 60
Vacuum Grip- ping Systems
Weight [g] 16 16 16
