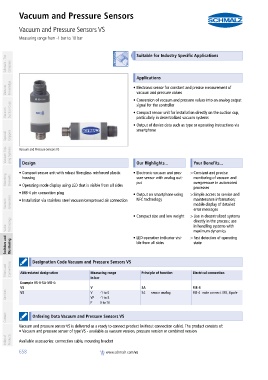

Page 658 - Schmalz - Vacuum Components

EN_Ventile.book Seite 658 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Vacuum and Pressure Sensors
Vacuum and Pressure Sensors VS
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Electronic sensor for constant and precise measurement of
vacuum and pressure values
• Conversion of vacuum and pressure values into an analog output
signal for the controller
Vacuum Suction Cups • Compact sensor unit for installation directly on the suction cup,
particularly in decentralized vacuum systems

• Output of device data such as type or operating instructions via
smartphone
Special Grippers

Vacuum Grip- ping Systems Vacuum and Pressure Sensors VS Our Highlights... Your Benefits...

container
Design

• Compact sensor unit with robust fiberglass reinforced plastic • Electronic vacuum and pres- >Constant and precise
Mounting Elements housing sure sensor with analog out- monitoring of vacuum and
overpressure in automated
put
• Operating mode display using LED that is visible from all sides
processes
• M8-4 pin connection plug • Output on smartphone using >Simple access to service and
Vacuum Generators • Installation via stainless steel vacuum/compressed air connection NFC technology maintenance information;
mobile display of detailed
error messages
• Compact size and low weight >Use in decentralized systems
directly in the process; use
Valve Technology in handling systems with
maximum dynamics
Switches and Monitoring • LED operation indicator visi- >Fast detection of operating
ble from all sides
state

container Designation Code Vacuum and Pressure Sensors VS
Filters and Connections container Abbreviated designation Measuring range Principle of function Electrical connection

in bar
Example VS-V-SA-M8-4:
VS V SA M8-4
Services VS V VP -1 to 0 SA sensor analog M8-4 male connect. M8, 4 pole
-1 to 8
P 0 to 10

container
Contact Ordering Data Vacuum and Pressure Sensors VS
Vacuum and pressure sensor VS is delivered as a ready to connect product (without connection cable). The product consists of:
container
• Vacuum and pressure sensor of type VS - available as vacuum version, pressure version or combined version
Index of Products Available accessories: connection cable, mounting bracket

658 www.schmalz.com/vs
