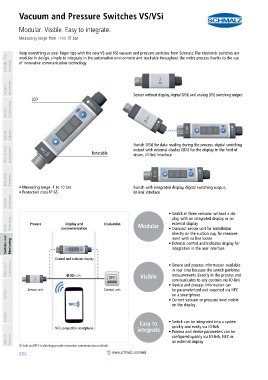

Vacuum and Pressure Switches VS/VSi
Modular. Visible. Easy to integrate.
PA01019111_inh_EN.pdf Measuring range from -1 to 10 bar PA01019111_inh_EN.pdf

Keep everything at your finger tips with the new VS and VSi vacuum and pressure switches from Schmalz: The electronic switches are
Schmalz - The Company modular in design, simple to integrate in the automation environment and trackable throughout the entire process thanks to the use
of innovative communication technology.

Vacuum Knowledge

LED Sensor without display, digital (VSi) and analog (VS) switching output

Vacuum Suction Cups

Special Grippers

Switch (VSi) for data reading during the process, digital switching
Vacuum Grip- ping Systems Rotatable output with external display (SDI) for the display in the field of
vision, IO-link interface

Mounting Elements

• Measuring range -1 to 10 bar Switch with integrated display, digital switching output,
• Protection class IP 65 IO-link interface
Vacuum Generators

• Switch in three versions: without a dis-
play, with an integrated display or an
external display
Display and
Valve Technology Process parameterization Evaluation Modular • Compact sensor unit for installation

directly on the suction cup, for measure-
Switches and Monitoring • External control and indicator display for
ment with no line losses
integration in the user interface

Control and indicator display
Filters and Connections • Device and process information available
in real time because the switch performs
measurements directly in the process and
Visible
communicates to any controls via IO-link
• Device and process information can
Sensor unit
Control unit
Services be parameterized and exported via NFC
on a smartphone
• Current vacuum or pressure level visible
on the display
Contact
Easy to • Switch can be integrated into a system
quickly and easily via IO-link
NFC-compatible smartphone integrate • Process and device parameters can be
Index of Products configured quickly via IO-link, NFC or
an external display
IO-Link and NFC technology provide innovative communication methods
656 www.schmalz.com/vsi
