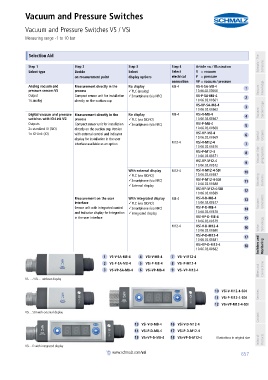

Vacuum and Pressure Switches
Vacuum and Pressure Switches VS / VSi
PA01019111_inh_EN.pdf Selection Aid PA01019111_inh_EN.pdf
Measuring range -1 to 10 bar

Step 1 Step 2 Step 3 Step 4 Article no. / Illustration Schmalz - The Company
Select type Decide Select Select V = vacuum
on measurement point display options electrical P = pressure
connection VP = vacuum / pressure
Analog vacuum and Measurement directly in the No display M8-4 VS-V-SA-M8-4 1 Knowledge
pressure sensors VS process PLC (analog) 10.06.02.00560 Vacuum
Output Compact sensor unit for installation Smartphone (via NFC) VS-P-SA-M8-4 2
1x analog directly on the suction cup 10.06.02.00561
VS-VP-SA-M8-4 3
10.06.02.00562 Suction Cups
Digital vacuum and pressure Measurement directly in the No display M8-4 VSi-V-M8-4 4 Vacuum
switches with IO-Link VSi process PLC (via SIO/IO) 10.06.02.00567
Outputs Compact sensor unit for installation Smartphone (via NFC) VSi-P-M8-4 5
2x standard IO (SIO) directly on the suction cup. Version 10.06.02.00568
1x IO-Link (IO) with external control and indicator VSi-VP-M8-4 6 Grippers
10.06.02.00569 Special
display for installation in the user
M12-4 VSi-V-M12-4
interface available as an option 7
10.06.02.00570
VSi-P-M12-4 8
10.06.02.00571 Vacuum Grip- ping Systems
VSi-VP-M12-4 9
10.06.02.00572
With external display M12-4 VSi-V-M12-4-SDI 10
PLC (via SIO/IO) 10.06.02.00587
Smartphone (via NFC) VSi-P-M12-4-SDI 11 Mounting Elements
External display 10.06.02.00588
VSi-VP-M12-4-SDI 12
10.06.02.00589
Measurement on the user With integrated display M8-4 VSi-V-D-M8-4 13
interface PLC (via SIO/IO) 10.06.02.00577 Vacuum Generators
Sensor unit with integrated control Smartphone (via NFC) VSi-P-D-M8-4 14
and indicator display for integration Integrated display 10.06.02.00578
in the user interface VSi-VP-D-M8-4 15
10.06.02.00579
M12-4 VSi-V-D-M12-4 16 Valve Technology
10.06.02.00580
VSi-P-D-M12-4 17
10.06.02.00581
VSi-VP-D-M12-4 18 Switches and Monitoring
10.06.02.00582
1 VS-V-SA-M8-4 4 VSi-V-M8-4 7 VSi-V-M12-4
2 VS-P-SA-M8-4 5 VSi-P-M8-4 8 VSi-P-M12-4
Filters and
3 6 9 Connections
VS-VP-SA-M8-4
VSi-VP-M8-4
VSi-VP-M12-4
VS… / VSi… without display
10 VSi-V-M12-4-SDI
11 VSi-P-M12-4-SDI Services
12 VSi-VP-M12-4-SDI
VSi…SDI with external display
Contact

13 VSi-V-D-M8-4 16 VSi-V-D-M12-4
14 VSi-P-D-M8-4 17 VSi-P-D-M12-4
Index of Products
15 VSi-VP-D-M8-4 18 VSi-VP-D-M12-4 Illustrations in original size
VSi…D with integrated display
www.schmalz.com/vsi
