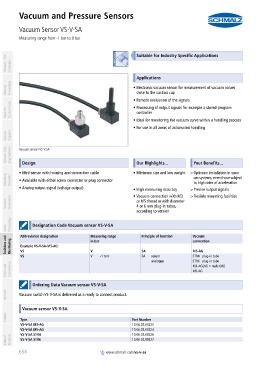

Page 654 - Schmalz - Vacuum Components

EN_Ventile.book Seite 654 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Vacuum and Pressure Sensors
Vacuum Sensor VS-V-SA
PA01019111_inh_EN.pdf Measuring range from -1 bar to 0 bar PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Electronic vacuum sensor for measurement of vacuum values
close to the suction cup
• Remote evaluation of the signals
Vacuum Suction Cups • Processing of output signals for example a stored-program
controller
• Ideal for monitoring the vacuum curve within a handling process
• For use in all areas of automated handling
Special Grippers

Vacuum Grip- ping Systems Vacuum sensors VS-V-SA Our Highlights... Your Benefits...

container
Design

• Mini-sensor with housing and connection cable • Minimum size and low weight >Optimum installation in vacu-
Mounting Elements • Available with either screw connector or plug connector um systems, even those subject
to high rates of acceleration
• Analog output signal (voltage output) • High measuring accuracy >Precise output signals

Vacuum Generators • Vacuum connection with M3 >Flexible mounting facilities
or M5 thread or with diameter
4 or 6 mm plug-in tubes,
according to version

Valve Technology container Designation Code Vacuum sensor VS-V-SA

container Abbreviated designation Measuring range Principle of function Vacuum
Switches and Monitoring Example VS-V-SA-M5-AG: in bar connection

VS
SA
STR4 plug-in tube
VS V V -1 to 0 SA sensor M5-AG
STR6 plug-in tube
analogue
Filters and Connections M3-AG(AG = male (M))
M5-AG
container
Ordering Data Vacuum sensor VS-V-SA
Services Vacuum switch VS-V-SA is delivered as a ready to connect product.
container

container
Vacuum sensor VS-V-SA
Contact container Type Part Number

VS-V-SA M3-AG 10.06.02.00225
VS-V-SA M5-AG 10.06.02.00224
10.06.02.00226
VS-V-SA STR4
Index of Products VS-V-SA STR6 10.06.02.00227
654 www.schmalz.com/vs-v-sa
