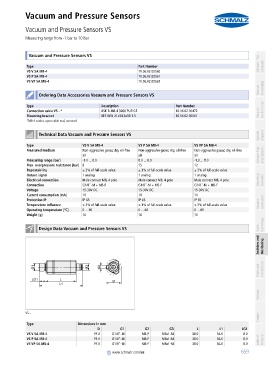

Page 659 - Schmalz - Vacuum Components

EN_Ventile.book Seite 659 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Vacuum and Pressure Sensors
Vacuum and Pressure Sensors VS
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container

container Vacuum and Pressure Sensors VS Schmalz - The
Type Part Number Company
VS V SA M8-4 10.06.02.00560
VS P SA M8-4 10.06.02.00561
VS VP SA M8-4 10.06.02.00562
Vacuum Knowledge
container
Ordering Data Accessories Vacuum and Pressure Sensors VS
container
Type Description Part Number
Connection cable VS...* ASK B-M8-4 3000 PUR GE 10.06.02.00472 Vacuum Suction Cups
Mounting bracket BEF-WIN 21x34.5x59 1.5 10.06.02.00061
*M8-4 socket, open cable end, screened
container
Special Grippers
Technical Data Vacuum and Pressure Sensors VS
container
Type VS V SA M8-4 VS P SA M8-4 VS VP SA M8-4
Measured medium Non-aggressive gases; dry, oil-free Non-aggressive gases; dry, oil-free Non-aggressive gases; dry, oil-free
air air air Vacuum Grip- ping Systems
Measuring range [bar] -1.0 ... 0.0 0.0 ... 8.0 -1.0 ... 8.0
Max. overpressure resistance [bar] 8 15 12
Repeatability ± 3% of full-scale value ± 3% of full-scale value ± 3% of full-scale value
Output signal 1 analog 1 analog 1 analog
Electrical connection Male connect M8, 4 pole Male connect M8, 4 pole Male connect M8, 4 pole Mounting Elements
Connection G1/8"-M + M5-F G1/8"-M + M5-F G1/8"-M + M5-F
Voltage 15-30V DC 15-30V DC 15-30V DC
Current consumption [mA] 10 10 10
Protection IP IP 65 IP 65 IP 65 Generators
Temperature influence ± 3% of full-scale value ± 3% of full-scale value ± 3% of full-scale value Vacuum
Operating temperature [°C] 0 ... 60 0 ... 60 0 ... 60
Weight [g] 16 16 16
container Technology
Design Data Vacuum and Pressure Sensors VS Valve

Switches and Monitoring
container

Filters and Connections

Services

VS...
Contact
container
Type Dimensions in mm
D G1 G2 G3 L L1 LG1
VS V SA M8-4 19.0 G1/8"-M M5-F M8x1-M 38.0 56.0 8.0
VS P SA M8-4 19.0 G1/8"-M M5-F M8x1-M 38.0 56.0 8.0 Index of Products
VS VP SA M8-4 19.0 G1/8"-M M5-F M8x1-M 38.0 56.0 8.0 container

container 659
www.schmalz.com/vs
