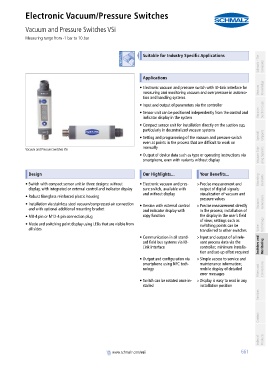

Page 661 - Schmalz - Vacuum Components

EN_Ventile.book Seite 661 Dienstag, 23. Februar 2016 4:14 16
PA01019111_inh_EN.pdf
Electronic Vacuum/Pressure Switches
Vacuum and Pressure Switches VSi
PA01019111_inh_EN.pdf Measuring range from -1 bar to 10 bar PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Electronic vacuum and pressure switch with IO-Link interface for Vacuum Knowledge
measuring and monitoring vacuum and overpressure in automa-
tion and handling systems
• Input and output of parameters via the controller
• Sensor unit can be positioned independently from the control and Vacuum Suction Cups
indicator display in the system

• Compact sensor unit for installation directly on the suction cup,
particularly in decentralized vacuum systems
• Setting and programming of the vacuum and pressure switch Special Grippers
even at points in the process that are difficult to work on
manually
Vacuum and Pressure Switches VSi
• Output of device data such as type or operating instructions via Vacuum Grip- ping Systems
smartphone, even with variants without display

container
Design Our Highlights... Your Benefits...
• Switch with compact sensor unit in three designs: without • Electronic vacuum and pres- >Precise measurement and Mounting Elements
display, with integrated or external control and indicator display sure switch, available with output of digital signals;
and without display visualization of vacuum and
• Robust fiberglass reinforced plastic housing
pressure values
• Installation via stainless steel vacuum/compressed air connection • Version with external control >Precise measurement directly Vacuum Generators
and with optional additional mounting bracket and indicator display with in the process; installation of
• M8-4 pin or M12-4 pin connection plug copy function the display in the user’s field
of view; settings such as
• Mode and switching point display using LEDs that are visible from switching points can be Technology
all sides transferred to other switches Valve

• Communication in all stand- >Input and output of all rele-
ard field bus systems via IO- vant process data via the
Link interface controller; minimum installa- Switches and Monitoring
tion and set-up effort required
• Output and configuration via >Simple access to service and
smartphone using NFC tech- maintenance information;
nology mobile display of detailed Filters and Connections
error messages
• Switch can be rotated once in- >Display is easy to read in any
stalled installation position
Services

Contact

Index of Products

container
container 661
www.schmalz.com/vsi
