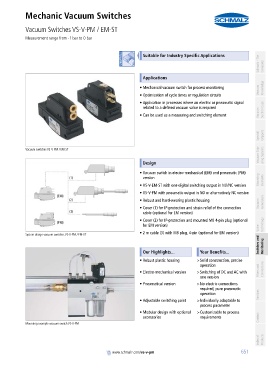

Mechanic Vacuum Switches
Vacuum Switches VS-V-PM / EM-ST
PA01019111_inh_EN.pdf Measurement range from -1 bar to 0 bar PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Mechanical vacuum switch for process monitoring Vacuum Knowledge
• Optimization of cycle times or regulation circuits
• Application in processes where an electric or pneumatic signal
related to a defined vacuum value is required Suction Cups
• Can be used as a measuring and switching element Vacuum

Special Grippers

Vacuum Grip- ping Systems
Vacuum switches VS-V-PM / EM-ST
container
Design

• Vacuum switch in electro-mechanical (EM) and pneumatic (PM)
version Mounting Elements
• VS-V-EM-ST with one digital switching output in NO/NC version
• VS-V-PM with pneumatic output in NO or alternatively NC version
• Robust and hard-wearing plastic housing Vacuum Generators

• Cover (1) for IP-protection and strain relief of the connection
cable (optional for EM version)
• Cover (2) for IP-protection and mounted M8 4-pin plug (optional
for EM version) Valve Technology
• 2 m cable (3) with M8 plug, 4-pin (optional for EM version)
System design vacuum switches VS-V-PM / EM-ST
Switches and

container Monitoring
Our Highlights... Your Benefits...
• Robust plastic housing >Solid construction, precise
operation
• Electro-mechanical version >Switching of DC and AC with Filters and Connections
one version
• Pneumatical version >No electric connections
required, pure pneumatic
operation Services
• Adjustable switching point >Individually adaptable to
process parameter
• Modular design with optional >Customizable to process
accessories requirements Contact
Mounting example vacuum switch VS-V-PM

Index of Products

container
www.schmalz.com/vs-v-pm
