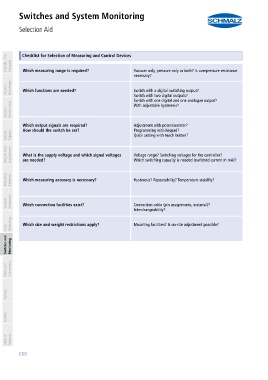

Switches and System Monitoring
Selection Aid
PA01019111_inh_EN.pdf PA01019111_inh_EN.pdf

Schmalz - The Company Checklist for Selection of Measuring and Control Devices

Vacuum only, pressure only or both? Is overpressure resistance
Which measuring range is required?
necessary?
Vacuum Knowledge Which functions are needed? Switch with a digital switching output?
Switch with two digital outputs?
Switch with one digital and one analogue output?
With adjustable hysteresis?
Vacuum Suction Cups

Which output signals are required? Adjustment with potentiometer?
Programming with keypad?
How should the switch be set?
Special Grippers Quick setting with teach button?

Vacuum Grip- ping Systems What is the supply voltage and which signal voltages Voltage range? Switching voltages for the controller?

Which switching capacity is needed (switched current in mA)?
are needed?

Mounting Elements Which measuring accuracy is necessary? Hysteresis? Repeatability? Temperature stability?

Vacuum Generators Which connection facilities exist? Connection cable (pin assignments, material)?

Interchangeability?

Valve Technology Which size and weight restrictions apply? Mounting facilities? Is on-site adjustment possible?
