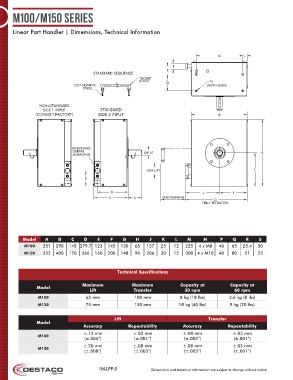

Page 5 - Destaco - Linear Part Handler

M100/M150 Series

Linear Part Handler | Dimemsions, Technical Information

M L

R
P
STANDARD SEQUENCE
"HOME"
(START) Q N
DOT SIGNIFYS (BOTH SIDES)
DWELL

NON-STANDARD
SIDE 1 INPUT STANDARD
(CONSULT FACTORY) SIDE 2 INPUT A

ROBOHAND
GRIPPER ØK h7 B
MOUNTING

MAX LIFT F
H

G J E
C S MAX TRANSFER D
FULLY RETRACTED

Model A B C D E F G H J K L M N P Q R S
M100 251 290 145 279.7 123 145 130 65 157 25 12 225 4 x M8 40 65 25.4 50
M150 332 400 170 366 160 200 148 90 206 30 15 300 4 x M10 40 80 51 55

Technical Specifications

Maximum Maximum Capacity at Capacity at
Model
Lift Transfer 30 rpm 60 rpm
M100 65 mm 100 mm 8 kg (18 lbs) 3.6 kg (8 lbs)
M150 75 mm 150 mm 18 kg (40 lbs) 9 kg (20 lbs)

Lift Transfer
Model
Accuracy Repeatability Accuracy Repeatability
±.13 mm ±.03 mm ±.08 mm ±.03 mm
M100
(±.005”) (±.001”) (±.003”) (±.001”)
±.20 mm ±.08 mm ±.08 mm ±.03 mm
M150
(±.008”) (±.003”) (±.003”) (±.001”)

IN-LPP-5 Dimensions and technical information are subject to change without notice
