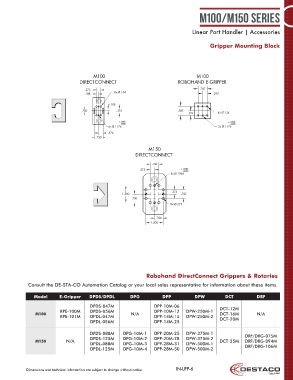

Page 6 - Destaco - Linear Part Handler

M100/M150 Series

Linear Part Handler | Accessories

Gripper Mounting Block

M100 M100
DIRECTCONNECT ROBOHAND E-GRIPPER
.375 .787
.188 8x Ø.134 .394

.188
.750 .375 .787
.394 4x Ø.134
+.0005 +.0005
-.0000 -.0000
4x Ø.1176 2x Ø.1176
.375
.750

M150
DIRECTCONNECT
.750
.375 +.0005
-.0000
4x Ø.1964

.375
1.500 .750
.750
8x Ø.219

.750
1.500

Robohand DirectConnect Grippers & Rotaries

Consult the DE-STA-CO Automation Catalog or your local sales representative for information about these items.

Model E-Gripper DPDS/DPDL DPG DPP DPW DCT DRF
DPDS-047M DPP-10M-06
RPE-100M DPDS-056M DPP-10M-12 DPW-250M-1 DCT-12M
M100 N/A DCT-16M N/A
RPE-101M DPDL-047M DPP-14M-15 DPW-250M-2 DCT-20M
DPDL-056M DPP-14M-25

DPDS-088M DPG-10M-1 DPP-20M-25 DPW-375M-1
DPDS-125M DPG-10M-2 DPP-20M-28 DPW-375M-2 DRF/DRG-075M
M150 N/A DCT-25M DRF/DRG-094M
DPDL-088M DPG-10M-3 DPP-28M-31 DPW-500M-1 DRF/DRG-106M
DPDL-125M DPG-10M-4 DPP-28M-50 DPW-500M-2

Dimensions and technical information are subject to change without notice IN-LPP-6
