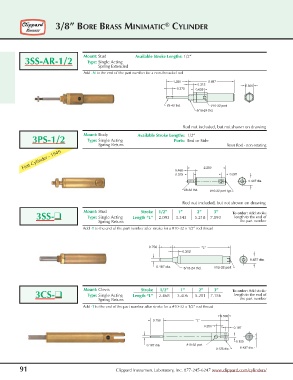

Page 91 - Clippard - Cylinders

®
3/8” BORE BRASS MINIMATIC CYLINDER

Mount: Stud Available Stroke Lengths: 1/2”
3SS-AR-1/2 Type: Single Acting
Spring Extended
Add -N to the end of the part number for a non-threaded rod

1.250 2.687
0.312
0.500
0.375 0.625

#5-40 thd. #10-32 port
5/16-24 thd.

Rod nut included, but not shown on drawing

Mount: Body Available Stroke Lengths: 1/2”
3PS-1/2 Type: Single Acting Ports: End or Side
Spring Return Brass Rod - non-rotating
First Cylinder - 1949

0.468 2.250
0.375 0.281
0.437 dia.
#8-32 thd. #10-32 port typ.

Rod nut included, but not shown on drawing

Mount: Stud Stroke 1/2” 1” 2” 3” To order: Add stroke
3SS-❑ Type: Single Acting Length “L” 2.093 3.343 5.218 7.093 length to the end of
Spring Return the part number
Add -T to the end of the part number after stroke for a #10-32 x 1/2” rod thread

0.750 “L“
0.312
0.437 dia.
0.187 dia.
5/16-24 thd. #10-32 port

Mount: Clevis Stroke 1/2” 1” 2” 3” To order: Add stroke
3CS-❑ Type: Single Acting Length “L” 2.468 3.406 5.281 7.156 length to the end of
Spring Return the part number
Add -T to the end of the part number after stroke for a #10-32 x 1/2” rod thread

0.500
0.750 “L“
0.250
0.187

0.125
0.187 dia. #10-32 port
0.125 dia. 0.437 dia.

91 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com/cylinders/
