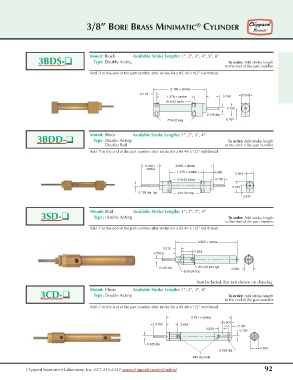

3/8” BORE BRASS MINIMATIC CYLINDER

Mount: Block Available Stroke Lengths: 1”, 2”, 3”, 4”, 5”, 6”
3BDS-❑ Type: Double Acting To order: Add stroke length
to the end of the part number
Add -T to the end of the part number after stroke for a #5-40 x 1/2” rod thread

2.140 + stroke
0.173 0.500
1.278 + stroke 0.750
#10-32 ports
0.750
0.125 dia.
#10-32 mtg. 0.437

Mount: Block Available Stroke Lengths: 1”, 2”, 3”, 4”
3BDD-❑ Type: Double Acting To order: Add stroke length
Double Rod to the end of the part number
Add -T to the end of the part number after stroke for a #5-40 x 1/2” rod thread

0.750 + 2.656 + stroke
stroke
1.278 + stroke 0.683
0.500
#10-32 holes 0.750
0.750
0.125 dia. typ. #10-32 mtg.
0.437

Mount: Stud Available Stroke Lengths: 1”, 2”, 3”, 4”
3SD-❑ Type: Double Acting To order: Add stroke length
to the end of the part number
Add -T to the end of the part number after stroke for a #5-40 x 1/2” rod thread

2.562 + stroke
0.312
0.623
0.750

0.125 dia. #10-32 port typ. 0.500
5/16-24 thd.
Nut included, but not shown on drawing
Mount: Clevis Available Stroke Lengths: 1”, 2”, 3”, 4”
3CD-❑ Type: Double Acting To order: Add stroke length
to the end of the part number
Add -T to the end of the part number after stroke for a #5-40 x 1/2” rod thread
2.791 + stroke
0.500
0.750 0.654
0.187
0.234
0.125
0.125 dia.
0.500
0.125 dia.
#10-32 ports
