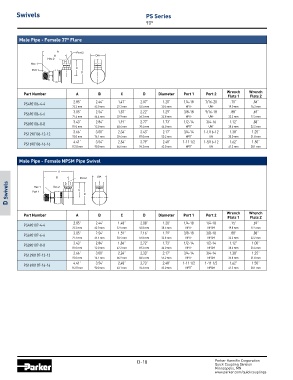

Page 170 - Parker - Quick Coupling Products

Swivels PS Series
90º

Male Pipe - Female 37° Flare

A Port 2
B DIA
Hex 2
Hex 1 C
Port 1
D

Part Number A B C D Diameter Port 1 Port 2 Wrench Wrench
Flats 1
Flats 2
PS490106-4-4 2.85” 2.44” 1.47” 2.07” 1.20” 1/4-18 7/16-20 .75” .56”
72.3 mm 62.0 mm 37.3 mm 52.5 mm 30.5 mm NPTF UNF 19.0 mm 14.3 mm
PS690106-6-6 3.05” 2.54” 1.57” 2.22” 1.29” 3/8-18 9/16-18 .88” .69”
77.4 mm 64.4 mm 39.9 mm 56.3 mm 32.8 mm NPTF UNF 22.2 mm 17.5 mm
3.43” 2.84” 1.91” 2.77” 1.73” 1/2-14 3/4-16 1.12” .88”
PS890106-8-8
87.0 mm 72.0 mm 48.4 mm 70.4 mm 44.0 mm NPTF UNF 28.6 mm 22.2 mm
3.66” 3.00” 2.34” 3.43” 2.17” 3/4-14 1-1/16-12 1.38” 1.25”
PS1290106-12-12
93.0 mm 76.1 mm 59.4 mm 87.0 mm 55.2 mm NPTF UN 35.0 mm 31.8 mm
4.41” 3.54” 2.54” 3.79” 2.48” 1-11 1/2 1-5/16-12 1.62” 1.50”
PS1690106-16-16
112.0 mm 90.0 mm 64.6 mm 96.2 mm 63.0 mm NPTF UN 41.3 mm 38.1 mm
Male Pipe - Female NPSM Pipe Swivel

A
B Port 2 DIA
D Swivels Port 1 Hex 2 C D
Hex 1

Wrench Wrench
Part Number A B C D Diameter Port 1 Port 2
Flats 1 Flats 2
2.85” 2.44” 1.48” 2.08” 1.20” 1/4-18 1/4-18 .75” .69”
PS490107-4-4
72.3 mm 62.0 mm 37.5 mm 52.8 mm 30.5 mm NPTF NPSM 19.0 mm 17.4 mm
3.05” 2.54” 1.51” 2.16” 1.29” 3/8-18 3/8-18 .88” .88”
PS690107-6-6
77.4 mm 64.4 mm 38.4 mm 54.8 mm 32.8 mm NPTF NPSM 22.2 mm 22.2 mm
3.43” 2.84” 1.86” 2.72” 1.73” 1/2-14 1/2-14 1.12” 1.00”
PS890107-8-8
87.0 mm 72.0 mm 47.2 mm 69.2 mm 44.0 mm NPTF NPSM 28.6 mm 25.4 mm
PS1290107-12-12 3.66” 3.00” 2.24” 3.33” 2.17” 3/4-14 3/4-14 1.38” 1.25”
93.0 mm 76.1 mm 56.9 mm 84.5 mm 55.2 mm NPTF NPSM 35.0 mm 31.8 mm
PS1690107-16-16 4.41” 3.54” 2.48” 3.73” 2.48” 1-11 1/2 1-11 1/2 1.62” 1.50”
112.0 mm 90.0 mm 63.1 mm 94.6 mm 63.0 mm NPTF NPSM 41.3 mm 38.1 mm

D-18 Parker Hannifin Corporation
Quick Coupling Division
Minneapolis, MN
www.parker.com/quickcouplings
