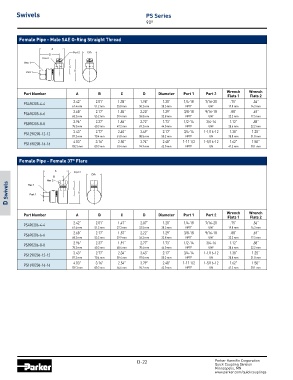

Swivels PS Series
90º

Female Pipe - Male SAE O-Ring Straight Thread
A
Port 2 DIA
B
Hex 2
Hex 1 C
D
Port 1

Wrench Wrench
Part Number A B C D Diameter Port 1 Port 2
Flats 1 Flats 2
2.42” 2.01” 1.38” 1.98” 1.20” 1/4-18 7/16-20 .75” .56”
PS490205-4-4
61.4 mm 51.2 mm 35.0 mm 50.2 mm 30.5 mm NPTF UNF 19.0 mm 14.3 mm
2.68” 2.17” 1.55” 2.20” 1.29” 3/8-18 9/16-18 .88” .69”
PS690205-6-6
68.2 mm 55.2 mm 39.4 mm 55.8 mm 32.8 mm NPTF UNF 22.2 mm 17.5 mm
PS890205-8-8 2.96” 2.37” 1.86” 2.72” 1.73” 1/2-14 3/4-16 1.12” .88”
75.3 mm 60.3 mm 47.2 mm 69.2 mm 44.0 mm NPTF UNF 28.6 mm 22.2 mm
PS1290205-12-12 3.43” 2.77” 2.40” 3.49” 2.17” 3/4-14 1-1/16-12 1.38” 1.25”
87.2 mm 70.4 mm 61.0 mm 88.5 mm 55.2 mm NPTF UN 35.0 mm 31.8 mm
PS1690205-16-16 4.03” 3.16” 2.50” 3.74” 2.48” 1-11 1/2 1-5/16-12 1.62” 1.50”
102.3 mm 80.3 mm 63.4 mm 94.9 mm 63.0 mm NPTF UN 41.3 mm 38.1 mm

Female Pipe - Female 37° Flare

A
Port 2
DIA
B
Hex 2
D Swivels Port 1 C D
Hex 1

Wrench Wrench
Part Number A B C D Diameter Port 1 Port 2 Flats 1 Flats 2
PS490206-4-4 2.42” 2.01” 1.47” 2.07” 1.20” 1/4-18 7/16-20 .75” .56”
61.4 mm 51.2 mm 37.3 mm 52.5 mm 30.5 mm NPTF UNF 19.0 mm 14.3 mm
PS690206-6-6 2.68” 2.17” 1.57” 2.22” 1.29” 3/8-18 9/16-18 .88” .69”
68.2 mm 55.2 mm 39.9 mm 56.3 mm 32.8 mm NPTF UNF 22.2 mm 17.5 mm
PS890206-8-8 2.96” 2.37” 1.91” 2.77” 1.73” 1/2-14 3/4-16 1.12” .88”
75.3 mm 60.3 mm 48.4 mm 70.4 mm 44.0 mm NPTF UNF 28.6 mm 22.2 mm
PS1290206-12-12 3.43” 2.77” 2.34” 3.43” 2.17” 3/4-14 1-1/16-12 1.38” 1.25”
87.2 mm 70.4 mm 59.4 mm 87.0 mm 55.2 mm NPTF UN 35.0 mm 31.8 mm
4.03” 3.16” 2.54” 3.79” 2.48” 1-11 1/2 1-5/16-12 1.62” 1.50”
PS1690206-16-16
102.3 mm 80.3 mm 64.6 mm 96.2 mm 63.0 mm NPTF UN 41.3 mm 38.1 mm
