P. 222

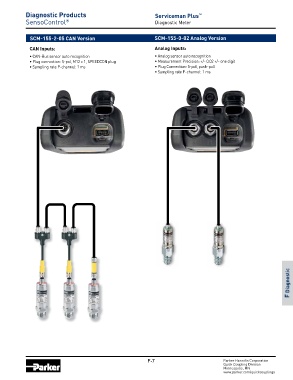

Diagnostic Products Serviceman Plus ™
SensoControl ® Diagnostic Meter
SCM-155-2-05 CAN Version SCM-155-0-02 Analog Version
CAN Inputs: Analog Inputs:
• CAN-Bus sensor auto recognition • Analog sensor auto recognition A Pneumatics
• Plug connection: 5-pol, M12 x 1, SPEEDCON plug • Measurement Precision: +/- 0.02 +/- one digit
• Sampling rate P-channel: 1 ms • Plug Connection: 5-pol, push-pull
• Sampling rate P-channel: 1 ms
B Hydraulics
C Thermoplastics
D Swivels
E Valves
analog
F Diagnostic
Appendices
F-7 Parker Hannifin Corporation
Quick Coupling Division
Minneapolis, MN
www.parker.com/quickcouplings
