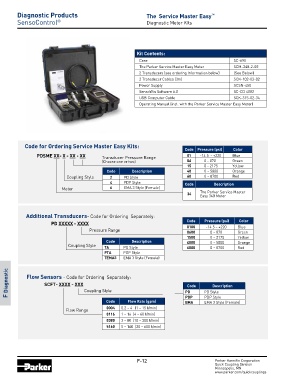

Page 227 - Parker - Quick Coupling Products

Diagnostic Products The Service Master Easy
™
SensoControl ® Diagnostic Meter Kits

A Pneumatics Kit Contents: SC-690

Case
The Parker Service Master Easy Meter
SCM-340-2-02
2 Transducers (see ordering Information below)
SCK-102-03-02
2 Transducer Cables (3m) (See Below)
Power Supply SCSN-450
B Hydraulics USB Computer Cable SCK-315-02-34
SensoWin Software 6.0
SC-CD 4082
Operating Manual (incl. with the Parker Service Master Easy Meter)

C Thermoplastics Code for Ordering Service Master Easy Kits: Code Pressure (psi) Blue

Color
PDSME XX- X - XX - XX
01
-14.5 - +220
Transducer Pressure Range
(Choose one or two)
0 - 2175
15
Yellow
0 – 5800
40
Orange
Code Description 06 0 - 870 Green
60
Coupling Style 2 4 PD Style Code 0 – 8700 Red
PDP Style
Description
D Swivels Meter 6 EMA 3 Style (Female) 34 The Parker Service Master
Easy 340 Meter

Additional Transducers- Code for Ordering Separately:
Color
PD XXXXX - XXXX Pressure Range Code Pressure (psi) Blue
0100
-14.5 – +220
E Valves Coupling Style Code Description 0600 0 – 870 Green
Yellow
1500
0 – 2175
Orange
0 – 5800
4000
TA
PDP Style
PTA PD Style 6000 0 – 8700 Red
TEMA3 EMA 3 Style (Female)
F Diagnostic Flow Sensors - Code for Ordering Separately: PD PD Style

SCFT- XXXX - XXX
Description
Code
Coupling Style
Code Flow Rate (gpm) PDP PDP Style
EMA 3 Style (Female)
EMA
Flow Range 0004 0.2 – 4 (1 – 15 l/min)
0116 1 – 16 (4 – 60 l/min)
Appendices 5160 5 – 160 (20 – 600 l/min)
0380
3 – 80 (10 – 300 l/min)
