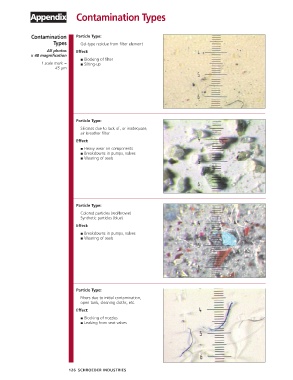

Appendix Contamination Types

Contamination Particle Type:
Types Gel-type residue from filter element

All photos Effect:
x 48 magnification
■ Blocking of filter
1 scale mark = ■ Silting-up
45 µm

Particle Type:
Silicates due to lack of, or inadequate,
air breather filter
Effect:
■ Heavy wear on components
■ Breakdowns in pumps, valves
■ Wearing of seals

Particle Type:
Colored particles (red/brown)
Synthetic particles (blue)
Effect:
■ Breakdowns in pumps, valves
■ Wearing of seals

Particle Type:
Fibers due to initial contamination,
open tank, cleaning cloths, etc.
Effect:
■ Blocking of nozzles
■ Leaking from seat valves
