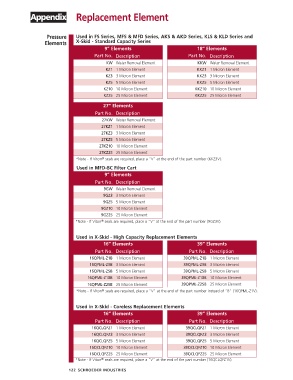

Appendix Replacement Element

Pressure Used in FS Series, MFS & MFD Series, AKS & AKD Series, KLS & KLD Series and
Elements X-Skid - Standard Capacity Series
9” Elements 18” Elements
Part No. Description Part No. Description
KW Water Removal Element KKW Water Removal Element
KZ1 1 Micron Element KKZ1 1 Micron Element
KZ3 3 Micron Element KKZ3 3 Micron Element
KZ5 5 Micron Element KKZ5 5 Micron Element
KZ10 10 Micron Element KKZ10 10 Micron Element
KZ25 25 Micron Element KKZ25 25 Micron Element

27” Elements
Part No. Description
27KW Water Removal Element
27KZ1 1 Micron Element
27KZ3 3 Micron Element
27KZ5 5 Micron Element
27KZ10 10 Micron Element
27KZ25 25 Micron Element
*Note - If Viton ® seals are required, place a “V” at the end of the part number (KKZ3V).
Used in MFD-BC Filter Cart
9” Elements
Part No. Description
9GW Water Removal Element
9GZ3 3 Micron Element
9GZ5 5 Micron Element
9GZ10 10 Micron Element
9GZ25 25 Micron Element
*Note - If Viton ® seals are required, place a “V” at the end of the part number (9GZ3V).

Used in X-Skid - High Capacity Replacement Elements
16” Elements 39” Elements
Part No. Description Part No. Description
16QPML-Z1B 1 Micron Element 39QPML-Z1B 1 Micron Element
16QPML-Z3B 3 Micron Element 39QPML-Z3B 3 Micron Element
16QPML-Z5B 5 Micron Element 39QPML-Z5B 5 Micron Element
16QPML-Z10B 10 Micron Element 39QPML-Z10B 10 Micron Element
16QPML-Z25B 25 Micron Element 39QPML-Z25B 25 Micron Element
*Note - If Viton ® seals are required, place a “V” at the end of the part number instead of “B” (16QPML-Z1V).

Used in X-Skid - Coreless Replacement Elements
16” Elements 39” Elements
Part No. Description Part No. Description
16QCLQFZ1 1 Micron Element 39QCLQFZ1 1 Micron Element
16QCLQFZ3 3 Micron Element 39QCLQFZ3 3 Micron Element
16QCLQFZ5 5 Micron Element 39QCLQFZ5 5 Micron Element
16QCLQFZ10 10 Micron Element 39QCLQFZ10 10 Micron Element
16QCLQFZ25 25 Micron Element 39QCLQFZ25 25 Micron Element
*Note - If Viton ® seals are required, place a “V” at the end of the part number (16QCLQFZ1V).

122 SCHROEDER INDUSTRIES
