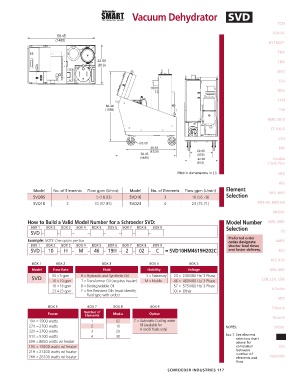

Page 119 - Shroeder - Filter Systems

Vacuum Dehydrator SVD
SMART ™
TECHNOLOGY INSIDE
TCM
TCM-FC
58.45
(1485)
HY-TRAX ®
TWS
32.00 TMS
(813)
SMU
TSU

TMU

TPM
66.34
(1685) TIM
HMG 3010

ET-100-6

CTU
8.00
48.34 EPK
(1228) 22.00
58.45 (559)
(1485) 32.00 Trouble
(813) Check Plus
Metric di men sions in ( ). HTB

HFS
Model No. of Elements Flow gpm (L/min) Model No. of Elements Flow gpm (L/min) Element MFS, MFD
SVD05 1 5 (18.93) SVD16 3 16 (56.78) Selection
SVD10 2 10 (37.85) SVD23 4 23 (75.71) MFS-HV, MFD-HV

MFDBC
How to Build a Valid Model Number for a Schroeder SVD: Model Number AMS, AMD
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 Selection
SVD – – – – – – – – FS
Preferred order
Example: NOTE: One option per box codes designate AMFS
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8 BOX 9 shorter lead times
SVD – 10 – H – M – 46 – 19H – 2 – 02 – C = SVD10HM4619H202C and faster delivery. KLC
KLS, KLD
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Model Flow Rate Fluid Mobility Voltage AKS, AKD
05 = 5 gpm H = Hydraulic and Synthetic Oil S = Stationary 23 = 230V/60 Hz/ 3 Phase
SVD LSN, LSA, LSW
10 = 10 gpm T = Transformer Oil (requires heater) M = Mobile 46 = 460V/60 Hz/ 3 Phase
16 = 16 gpm B = Biodegradable Oil 57 = 575V/60 Hz/ 3 Phase
23 = 23 gpm F = Fire Resistant Oils (must identify XX = Other X Series
fluid type with order)
MTS
BOX 6 BOX 7 BOX 8 BOX 9 Triton-A
Number of
Power Media Option
Elements Triton-E
19X = 1900 watts 1 02 C = Automatic Cooling water
27X = 2700 watts 2 10 fill (available for NOTES: SVD01
32X = 3200 watts 3 20 H and B fluids only)
51X = 5100 watts 4 30 Box 7. See element SVD
selection chart
09H = 8650 watts w/ heater above for
19H = 19200 watts w/ heater correlation IXU
21H = 21200 watts w/ heater between
number of
26H = 26100 watts w/ heater elements and Appendix
flow
