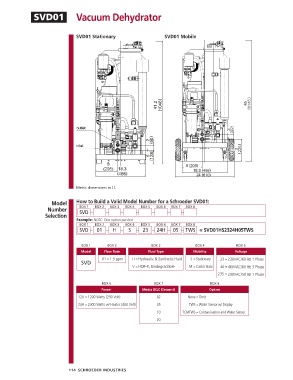

SVD01 Vacuum Dehydrator

SVD01 Stationary SVD01 Mobile

Metric di men sions in ( ).

Model How to Build a Valid Model Number for a Schroeder SVD01:
Number BOX 1 BOX 2 – BOX 3 – BOX 4 – BOX 5 – BOX 6 – BOX 7 – BOX 8
SVD –
Selection
Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
SVD – 01 – H – S – 23 – 24H – 05 – TWS = SVD01HS2324H05TWS

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Model Flow Rate Fluid Type Mobility Voltage
01 = 1.3 gpm H = Hydraulic & Synthetic Fluid S = Stationary 23 = 230VAC/60 Hz 1 Phase
SVD
V = HDF-R, Biodegradable M = Caster Base 46 = 460VAC/60 Hz 3 Phase
235 = 230VAC/50 Hz 1 Phase
BOX 6 BOX 7 BOX 8
Power Media (KLC Element) Option
12X = 1200 Watts (230 Volt) 02 None = Omit
24H = 2400 Watts w/ Heater (460 Volt) 05 TWS = Water Sensor w/ Display
10 TCMTWS = Contamination and Water Sensor
20
