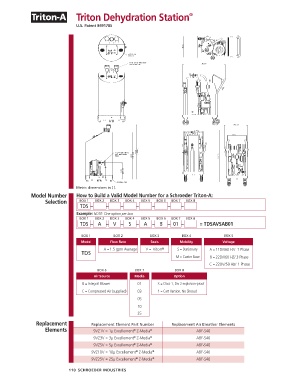

Triton-A Triton Dehydration Station ®

U.S. Patent 8491785

Metric di men sions in ( ).
Model Number How to Build a Valid Model Number for a Schroeder Triton-A:
Selection BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
TDS – – – – – – –
Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
TDS – A – V – S – A – B – 01 – = TDSAVSAB01

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Model Flow Rate Seals Mobility Voltage
A = 1.5 gpm Average V = Viton ® S = Stationary A = 110V/60 Hz/ 1 Phase
TDS
M = Caster Base B = 220V/60 HZ/ 3 Phase
C = 220V/50 Hz/ 1 Phase
BOX 6 BOX 7 BOX 8
Air Source Media Option
B = Integral Blower 01 X = Class 1, Div 2 explosion-proof
C = Compressed Air (supplied) 03 1 = Cart Version, No Shroud
05
10
25
Replacement Replacement Element Part Number Replacement Air Breather Elements
Elements 9VZ1V = 1µ Excellement Z-Media ® ABF-S40
®
9VZ3V = 3µ Excellement Z-Media ® ABF-S40
®
9VZ5V = 5µ Excellement Z-Media ® ABF-S40
®
9VZ10V = 10µ Excellement Z-Media ® ABF-S40
®
9VZ25V = 25µ Excellement Z-Media ® ABF-S40
®
