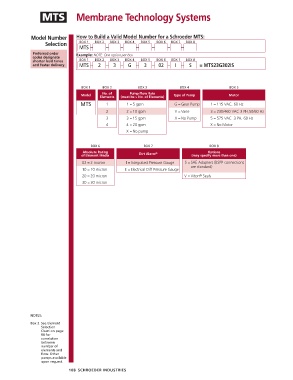

Page 110 - Shroeder - Filter Systems

MTS Membrane Technology Systems

Model Number How to Build a Valid Model Number for a Schroeder MTS:
Selection BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
MTS – – – – – – –
Preferred order Example: NOTE: One option per box
codes designate
shorter lead times BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
and faster delivery. MTS – 2 – 3 – G – 3 – 02 – I – S = MTS23G302IS

BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
No. of
Pump Flow Rate
Model Elements (must be ≤ No. of Elements) Type of Pump Motor
MTS 1 1 = 5 gpm G = Gear Pump 1 = 115 VAC, 60 Hz
2 2 = 10 gpm V = Vane 3 = 230/460 VAC 3 PH,50/60 Hz
3 3 = 15 gpm X = No Pump 5 = 575 VAC 3 PH, 60 Hz
4 4 = 20 gpm X = No Motor
X = No pump

BOX 6 BOX 7 BOX 8
Absolute Rating Options
of Element Media Dirt Alarm ® (may specify more than one)
02 = 2 micron I = Integrated Pressure Gauge S = SAE Adapters (BSPP connections
are standard)
10 = 10 micron E = Electrical Diff Pressure Gauge
20 = 20 micron V = Viton ® Seals
30 = 30 micron

NOTES:
Box 3. See Element
Selection
Chart on page
98 for
correlation
between
number of
elements and
flow. Other
pumps available
upon request.
