Page 114 - Shroeder - Filter Systems

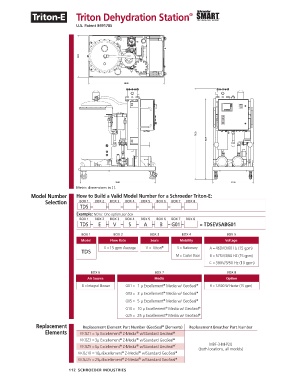

Triton-E Triton Dehydration Station ® SMART ™
TECHNOLOGY INSIDE
U.S. Patent 8491785

0
0
.
2
3

0 0 . 9 5

3
0
.
0
7
5
0
.
2
6

0 0 . 9 5 0 0 . 2 3
Metric di men sions in ( ).
Model Number How to Build a Valid Model Number for a Schroeder Triton-E:
Selection BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
TDS – – – – – – –
Example: NOTE: One option per box
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5 BOX 6 BOX 7 BOX 8
TDS – E – V – S – A – B – G01 – = TDSEVSABG01
BOX 1 BOX 2 BOX 3 BOX 4 BOX 5
Model Flow Rate Seals Mobility Voltage
E = 15 gpm Average V = Viton ® S = Stationary A = 460V/3/60 Hz (15 gpm)
TDS
M = Caster Base B = 575V/3/60 HZ (15 gpm)
C = 380V/3/50 Hz (10 gpm)
BOX 6 BOX 7 BOX 8
Air Source Media Option
®
B = Integral Blower G01 = 1 µ Excellement Media w/ GeoSeal ® H = 12500 W Heater (15 gpm)
®
G03 = 3 µ Excellement Media w/ GeoSeal ®
G05 = 5 µ Excellement Media w/ GeoSeal ®
®
G10 = 10 µ Excellement Media w/ GeoSeal ®
®
®
G25 = 25 µ Excellement Media w/ GeoSeal ®
Replacement Replacement Element Part Number (GeoSeal Elements) Replacement Breather Part Number
®
Elements KKGZ1 = 1µ Excellement Z-Media w/Standard GeoSeal ®
®
®
®
®
KKGZ3 = 3µ Excellement Z-Media w/Standard GeoSeal ®
MBF-3-M-P20
®
KKGZ5 = 5µ Excellement Z-Media w/Standard GeoSeal ® - (both locations, all models)
®
®
KKGZ10 = 10µ Excellement Z-Media w/Standard GeoSeal ®
®
®
®
KKGZ25 = 25µ Excellement Z-Media w/Standard GeoSeal ®
112
