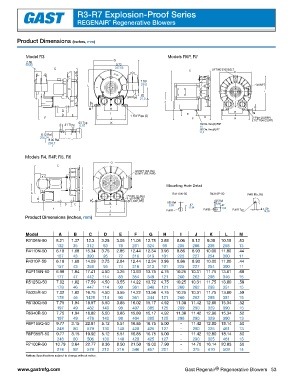

Page 53 - Gast Regenair Regenerative Blower
P. 53
R3-R7 Explosion-Proof Series
REGENAIR Regenerative Blowers
®
Product Dimensions (inches, mm)
Model R3 Models R6P, R7
�
C LIFTING EYE BOLT G
3/4 NPT
L
A
B
H M
E J
F D K 2" Pipe (2) (R6P)
2 1/2" Pipe (2) (R7)
.59 Dia. thru(4) R6P
15
.56 Dia. thru(4) R7
14,2
Models R4, R4P, R5, R6
G
C
3/4 NPT (R4, R6)
1/2 NPT (R5, R4P)
Mounting Hole Detail
L
A R4110N-50 R4310P-50 R4P, R5, R6
2" PIPE (2) (R6)
B 1 1/2" PIPE (2)
M (R4, R4P, R5)
D E H
F I
J
K
Product Dimensions (inches, mm)
Model A B C D E F G H I J K L M
R3105N-50 5.21 1.37 12.3 3.25 3.06 11.06 12.75 3.88 8.06 8.12 9.38 10.15 .53
132 35 312 83 78 281 324 99 205 206 238 258 13
R4110N-50 6.18 1.68 15.34 3.75 2.85 12.44 12.34 3.96 8.86 8.93 10.00 11.80 .44
157 43 390 95 72 316 313 101 225 227 254 300 11
R4310P-50 6.18 1.68 14.09 3.75 2.84 12.44 12.34 3.96 8.86 8.93 10.00 11.80 .44
157 43 358 95 74 316 313 101 225 227 254 300 11
R4P115N-50 6.98 1.84 17.41 4.50 3.25 13.93 13.75 4.75 10.25 10.31 11.75 13.61 .60
177 47 442 114 83 354 349 121 260 262 298 346 15
R5125Q-50 7.02 1.82 17.59 4.50 3.55 14.22 13.72 4.75 10.25 10.31 11.75 13.80 .59
178 46 447 114 90 361 348 121 260 262 298 351 15
R5325R-50 7.02 1.82 16.75 4.50 3.55 14.22 13.56 4.75 10.25 10.31 11.75 13.80 .59
178 46 1425 114 90 361 344 121 260 262 298 351 15
R6130Q-50 7.75 1.94 18.97 5.50 3.85 16.02 15.17 4.92 11.38 11.42 12.96 15.34 .52
197 49 482 140 98 407 385 125 289 290 329 390 13
R6340R-50 7.75 1.94 18.82 5.50 3.85 15.89 15.17 4.92 11.38 11.42 12.96 15.34 .52
197 49 478 140 98 404 385 125 298 290 329 390 13
R6P155Q-50 9.77 3.15 22.81 5.12 5.51 16.85 16.75 5.00 - 11.42 12.80 18.14 .50
248 80 579 130 140 428 425 127 - 290 325 461 13
R6P355R-50 9.77 3.15 19.92 5.12 5.51 16.85 16.75 5.00 - 11.42 12.80 18.14 .50
248 80 506 130 140 428 425 127 - 290 325 461 13
R7100R-50 10.79 3.64 22.77 8.36 8.50 21.50 18.00 7.90 - 14.76 16.14 20.03 .56
274 92 578 212 216 546 457 201 - 375 410 509 14
Notice: Specifications subject to change without notice.
