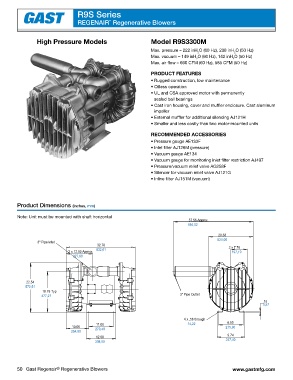

Page 50 - Gast Regenair Regenerative Blower

R9S Series

REGENAIR Regenerative Blowers
®

High Pressure Models Model R9S3300M
Max. pressure – 222 inH O (60 Hz), 208 inH O (50 Hz)
2 2
Max. vacuum – 149 inH O (60 Hz), 142 inH O (50 Hz)
2 2
Max. air flow – 660 CFM (60 Hz), 585 CFM (50 Hz)
PRODUCT FEATURES
• Rugged construction, low maintenance
• Oilless operation
• UL and CSA approved motor with permanently
sealed ball bearings
• Cast iron housing, cover and muffler enclosure. Cast aluminum
impeller
• External muffler for additional silencing AJ121H
• Smaller and less costly than two motor-mounted units
RECOMMENDED ACCESSORIES
• Pressure gauge AE133F
• Inlet filter AJ126M (pressure)
• Vacuum gauge AE134
• Vacuum gauge for monitoring inlet filter restriction AJ497
• Pressure/vacuum relief valve AG258F
• Silencer for vacuum relief valve AJ121G
• Inline filter AJ151M (vacuum)

Product Dimensions (inches, mm)

Note: Unit must be mounted with shaft horizontal
37.56 Approx.
954,02

20.63
524,00
3" Pipe Inlet
32.78
832,61 2 x 7.76
2 x 12.90 Approx 197,10
327,60

22.54
572,51
18.79 Typ
477,27 3" Pipe Outlet
.18
4,57

4 x .56 through
11.00 14,22 8.50
10.00 215,90
254,00 279,40
12.00 9.74
304,80 247,40
