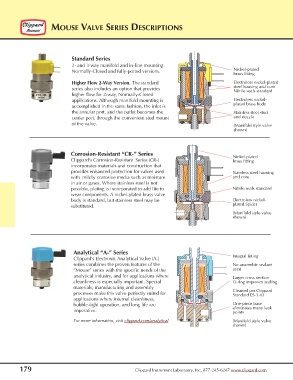

MOUSE VALVE SERIES DESCRIPTIONS







                               Standard Series
                               2- and 3-way manifold and in-line mounting.
                               Normally-Closed and fully-ported versions.                          Nickel-plated
                                                                                                   brass fitting
                               Higher Flow 2-Way Version. The standard                             Electroless nickel-plated
                                                                                                   steel housing and core
                               series also includes an option that provides
                                                                                                   Nitrile seals standard
                               higher flow for 2-way, Normally-Closed
                               applications. Although manifold mounting is                         Electroless nickel-
                                                                                                   plated brass body
                               accomplished in the same fashion, the inlet is
                               the annular port, and the outlet becomes the                        Stainless steel stud
                               center port, through the convenient stud mount                      and nozzle
                               of the valve.                                                       (Manifold style valve
                                                                                                   shown)





                               Corrosion-Resistant “CR-” Series
                               Clippard's Corrosion-Resistant  Series (CR-)                       Nickel-plated
                                                                                                  brass fitting
                               incorporates materials and construction that
                               provides enhanced protection for valves used                       Stainless steel housing
                               with  mildly corrosive media such as moisture                      and core
                               in air or gases. Where stainless steel is not
                               possible, plating is incorporated to add life to                   Nitrile seals standard
                               wear components. A nickel-plated brass valve
                               body is standard, but stainless steel may be                       Electroless nickel-
                               substituted.                                                       plated Spider
                                                                                                  (Manifold style valve
                                                                                                  shown)







                                Analytical “A-” Series
                                                                                                  Integral fitting
                                Clippard’s Electronic Analytical Valve (A-)
                                series combines the proven features of the                        No anaerobic sealant
                                “Mouse” series with the specific needs of the                     used
                                analytical industry, and for applications where
                                                                                                  Larger cross section
                                cleanliness is especially important. Special                      O-ring improves sealing
                                materials, manufacturing and assembly
                                                                                                  Cleaned per Clippard
                                processes make this valve perfectly suited for
                                                                                                  Standard ES-3.43
                                applications where internal cleanliness,
                                bubble-tight operation, and long life are                         One-piece base
                                                                                                  eliminates many leak
                                imperative.
                                                                                                  points
                                For more information, visit clippard.com/analytical               (Manifold style valve
                                                                                                  shown)









         179                                             Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com
