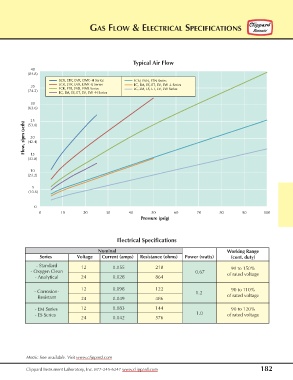

GAS FLOW & ELECTRICAL SPECIFICATIONS







                                                         Typical Air Flow
              40
             (84.8)
                          ECR, ETR, EVR, EWR -H Series   ECN, EVN, ETN Series
              35          ECR, ETR, EVR, EWR -L Series   EC, EM, ES, ET, EV, EW -L Series
             (74.2)       ECR, ETR, EVR, EWR Series      EC, EM, ES, ET, EV, EW Series
                          EC, EM, ES, ET, EV, EW -H Series
              30
             (63.6)

              25
           Flow, slpm (scfh)  (42.4)
             (53.0)
              20



              15
             (31.8)

              10
             (21.2)

              5
             (10.6)


               0
                 0        10        20       30        40       50        60       70        80       90       100
                                                            Pressure (psig)




                                                  Electrical Specifications

                                             Nominal                                                                 Working Range
                  Series                   Voltage       Current (amps)  Resistance (ohms)     Power (watts)     (cont. duty)

                - Standard
                                                     12                    0.055                       218                                90 to 150%
              - Oxygen Clean                                                       0.67
                                                     24                    0.028                       864                             of rated voltage
                - Analytical
                                                     12                    0.098                       122      90 to 110%
               - Corrosion-                                                        1.2
                 Resistant
                                                     24                    0.049                       486  of rated voltage
                                                     12                    0.083                       144  90 to 120%
                - EM Series
                - ES Series                                                        1.0          of rated voltage
                                                     24                    0.042                       576








            Metric line available. Visit www.clippard.com
