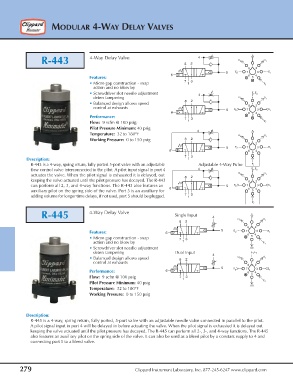

MODULAR 4-WAY DELAY VALVES

R-443 4-Way Delay Valve 4 O 2 S O 1
8
2
1
8 2
5 E 2 7 3 E 1
6 6 4
Features: 5
• Micro gap construction - snap 7 1 3 P 1
action and no blow by
• Screwdriver slot needle adjustment 4 E ,E 2
1
deters tampering O 2 O 1
8 2
• Balanced design allows speed 1
control at exhausts 8 2
5 S 2 7 3 S 1
6 6 4
Performance: 5
7 3
Flow: 9 scfm @ 100 psig; 1 P 1
Pilot Pressure Minimum: 40 psig
4 S
Temperature: 32 to 180°F O O
2 1
Working Pressure: 0 to 150 psig 8 2 1
8 2
5 E 2 7 3 E 1
6 6 4
5
7 3
Description: 1
R-443 is a 4-way, spring return, fully ported 5-port valve with an adjustable Adjustable 4-Way Pulse P 1
flow control valve interconnected to the pilot. A pilot input signal in port 4 4 E ,E 2
1
O O
actuates the valve. When the pilot signal is exhausted it is delayed, out 2 1
8 2
keeping the valve actuated until the pilot pressure has decayed. The R-443 8 1 2
can perform all 2, 3, and 4-way functions. The R-443 also features an 5 S 2 7 3 S 1
6 6 4
auxiliary pilot on the spring side of the valve. Port 5 is an auxiliary for 5
adding volume for longer time delays, if not used, port 5 should be plugged. 7 1 3
P
1
R-445 4-Way Delay Valve Single Input S
4
O O
8 2 2 1
1
8 2
5 E 7 3 E
Features: 6 2 1
6 5 4
• Micro gap construction - snap 7 3
action and no blow by 1 P 1
• Screwdriver slot needle adjustment (0)
deters tampering Dual Input E ,E 2
1
4
• Balanced design allows speed 8 2 O 2 O 1
control at exhausts 1
8 2
5 S 7 3 S
Performance: 6 2 6 4 1
5
Flow: 9 scfm @ 100 psig 7 3
1 P
Pilot Pressure Minimum: 40 psig 2
(0)
Temperature: 32 to 180°F
Working Pressure: 0 to 150 psig
Description:
R-445 is a 4-way, spring return, fully ported, 5-port valve with an adjustable needle valve connected in parallel to the pilot.
A pilot signal input in port 4 will be delayed in before actuating the valve. When the pilot signal is exhausted it is delayed out
keeping the valve actuated until the pilot pressure has decayed. The R-445 can perform all 2-, 3-, and 4-way functions. The R-445
also features an auxiliary pilot on the spring side of the valve. It can also be used as a bleed pilot by a constant supply to 4 and
connecting port 5 to a bleed valve.
