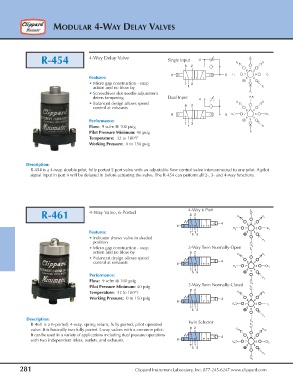

Page 288 - Clippard - Miniature Pneumatic Products and Solutions

MODULAR 4-WAY DELAY VALVES

R-454 4-Way Delay Valve Single Input 4 0 2 S 0 1

8 2
1
8 2
6 5 E 2 7 3 E 1
Features: 6 4
5
• Micro gap construction - snap 7 3
action and no blow by 1 P 1
• Screwdriver slot needle adjustment P 1
deters tampering Dual Input E 1 E 2
4
• Balanced design allows speed 8 2 0 2 0 1
control at exhausts 1
8 2
6 5 S 2 7 3 S 1
6 5 4
Performance:
7 3
Flow: 9 scfm @ 100 psig 1 P 1
Pilot Pressure Minimum: 40 psig P 2
Temperature: 32 to 180°F
Working Pressure: 0 to 150 psig

Description:
R-454 is a 4-way, double pilot, fully ported 5 port valve with an adjustable flow control valve interconnected to one pilot. A pilot
signal input in port 4 will be delayed in before actuating the valve. The R-454 can perform all 2-, 3- and 4-way functions.

4-Way 6 Port S
R-461 4-Way Valve, 6-Ported 8 2 O 2 1 O 1

4 1 2
6 8
E 7 3 E 1
2
Features: 7 1 6 5 4
5 3
• Indicator shows valve in shaded
position P 1
S 2
• Micro gap construction - snap 3-Way Twin Normally-Open E 1
action and no blow by 8 2 O
2 O 1
• Balanced design allows speed 1
control at exhausts 6 4 8 2
E 7 3 S
2 1
7 1 6 4
5 3 5
Performance:
P 1
Flow: 9 scfm @ 100 psig S
3-Way Twin Normally-Closed 2
Pilot Pressure Minimum: 40 psig S 1
8 2
Temperature: 32 to 180°F O 2 O 1
Working Pressure: 0 to 150 psig 4 1
6 8 2
S 7 3 E
2 1
7 1 6 4
5 3 5
P 1
Description: E 2
R-461 is a 6-ported, 4-way, spring return, fully ported, pilot operated Twin Selector S 1
valve. It is basically two fully ported 3-way valves with a common pilot. 8 2 O 3,4 O 1,2
It can be used in a variety of applications including dual pressure operations
4 8 1 2
with two independent inlets, outlets, and exhausts. 6
S 4 7 3 S 2
7 1 6 5 4
5 3
P
1
S
3
281 Clippard Instrument Laboratory, Inc. 877-245-6247 www.clippard.com
