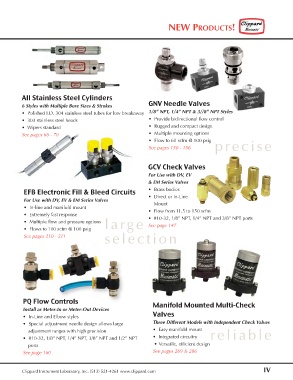

NEW PRODUCTS!

All Stainless Steel Cylinders
GNV Needle Valves
6 Styles with Multiple Bore Sizes & Strokes
• Polished I.D. 304 stainless steel tubes for low breakaway 1/8” NPT, 1/4” NPT & 3//8” NPT Styles
• 303 stainless steel heads • Provide bidirectional flow control
• Wipers standard • Rugged and compact design
See pages 66 - 70 • Multiple mounting options
• Flow to 60 scfm @ 100 psig
See pages 150 - 156 precise

GCV Check Valves
For Use with DV, EV
& EM Series Valves
• Brass bodies
EFB Electronic Fill & Bleed Circuits
• Direct or In-Line
For Use with DV, EV & EM Series Valves
Mount
• In-line and manifold mount
• Flow from 11.5 to 150 scfm
• Extremely fast response • #10-32, 1/8” NPT, 1/4” NPT and 3/8” NPT ports
• Multiple flow and pressure options large See page 147
• Flows to 100 scfm @ 100 psig
selection
See pages 210 - 211

PQ Flow Controls
Manifold Mounted Multi-Check
Install as Meter-In or Meter-Out Devices
Valves
• In-Line and Elbow styles
• Special adjustment needle design allows large Three Different Models with Independent Check Valves
adjustment ranges with high precision • Easy manifold mount reliable
• #10-32, 1/8” NPT, 1/4” NPT, 3/8” NPT and 1/2” NPT • Integrated circuitry
ports • Versatile, efficient design
See page 160 See pages 269 & 286

Clippard Instrument Laboratory, Inc. (513) 521-4261 www.clippard.com IV
