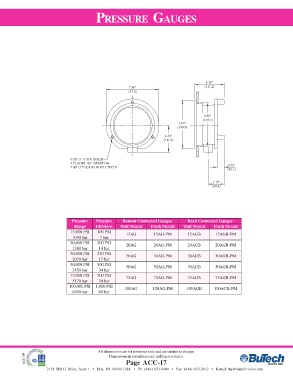

PRESSURE GAUGES

4.38"
7.56" (111.2)
(57.2)

6.50"
(165.1)
6.69"
(169.9)

4.38"
(111.2)

0.28" (7.1) DIA HOLES
3 PLACES 120˚ APART ON
0.75"
7.00" (177.8) DIA BOLT CIRCLE
(19.1)
1.75"
(44.4)

Pressure Pressure Bottom Connected Gauges Back Connected Gauges
Range Divisions Wall Mount Flush Mount Wall Mount Flush Mount
15,000 PSI 100 PSI
15AG 15AG-PM 15AGB 15AGB-PM
1030 bar 7 bar
20,000 PSI 200 PSI
20AG 20AG-PM 20AGB 20AGB-PM
1380 bar 14 bar
30,000 PSI 250 PSI
30AG 30AG-PM 30AGB 30AGB-PM
2070 bar 17 bar
50,000 PSI 500 PSI
50AG 50AG-PM 50AGB 50AGB-PM
3450 bar 34 bar
75,000 PSI 500 PSI
75AG 75AG-PM 75AGB 75AGB-PM
5170 bar 34 bar
100,000 PSI 1,000 PSI
100AG 100AG-PM 100AGB 100AGB-PM
6890 bar 69 bar

All dimensions are for reference only and are subject to change.
ACC-09 Dimensions in parentheses are millimeters (mm).
