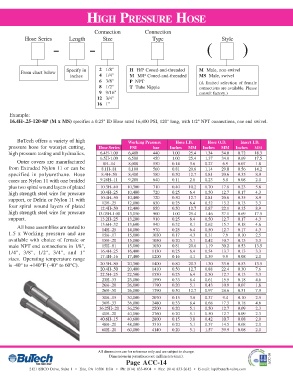

HIGH PRESSURE HOSE
Connection Connection
Hose Series Length Size Type Style
( )

Specify in 2 1/8" H H/P Coned-and-threaded M Male, non-swivel
From chart below
inches 4 1/4" M M/P Coned-and-threaded MS Male, swivel
6 3/8" P NPT (A limited selection of female
8 1/2" T Tube Nipple connections are available. Please
9 9/16" consult factory.)
12 3/4"
16 1"

Example:
16.4H-.25-120-8P (M x MS) specifies a 0.25" ID Hose rated 16,400 PSI, 120" long, with 1/2" NPT connections, one end swivel.

BuTech offers a variety of high Working Pressure Hose I.D. Hose O.D. Insert I.D.
pressure hose for waterjet cutting, Hose Series PSI bar Inches MM Inches MM Inches MM
high pressure testing and hydraulics. 6.4H-1.00 6,400 440 1.00 25.4 1.34 34.0 0.72 18.3
6.5H-1.00 6,500 450 1.00 25.4 1.37 34.8 0.69 17.5
Outer covers are manufactured 8H-.14 8,000 550 0.14 3.6 0.27 6.9 0.07 1.8
from Extruded Nylon 11 or can be 8.1H-.81 8,100 560 0.81 20.6 1.14 29.0 0.56 14.2
specified in polyurethane. Hose 8.4H-.50 8,400 580 0.50 12.7 0.81 20.6 0.35 8.9
cores are Nylon 11 with one braided 9.28H-.11 9,280 640 0.11 2.8 0.23 5.8 0.08 2.0
plus two spiral wound layers of plated 10.3H-.40 10,300 710 0.40 10.2 0.70 17.8 0.23 5.8
high strength steel wire for pressure 10.4H-.25 10,400 720 0.25 6.4 0.50 12.7 0.17 4.3
support, or Delrin or Nylon 11 with 10.4H-.50 10,400 720 0.50 12.7 0.81 20.6 0.35 8.9
12H-.25 12,000 830 0.25 6.4 0.52 13.2 0.13 3.3
four spiral wound layers of plated
12.4H-.50 12,400 850 0.50 12.7 0.87 22.1 0.35 8.9
high strength steel wire for pressure 13.05H-1.00 13,050 900 1.00 25.4 1.46 37.1 0.69 17.5
support. 13.2H-.25 13,200 910 0.25 6.4 0.50 12.7 0.17 4.3
13.6H-.32 13,600 940 0.32 8.1 0.62 15.7 0.18 4.6
All hose assemblies are tested to
14H-.25 14,000 970 0.25 6.4 0.50 12.7 0.17 4.3
1.5 x Working pressure and are 15H-.17 15,000 1030 0.17 4.3 0.31 7.9 0.10 2.5
available with choice of female or 15H-.20 15,000 1030 0.20 5.1 0.42 10.7 0.13 3.3
male NPT end connections in 1/8", 15H-.81 15,000 1030 0.81 20.6 1.19 30.2 0.53 13.5
1/4", 3/8", 1/2", 3/4", and 1" 16.4H-.25 16,400 1130 0.25 6.4 0.54 13.7 0.13 3.3
17.4H-.16 17,400 1200 0.16 4.1 0.39 9.9 0.08 2.0
sizes. Operating temperature range
is -40° to +140°F (-40° to 60°C). 20.3H-.80 20,300 1400 0.80 20.3 1.30 33.0 0.53 13.5
20.4H-.50 20,400 1410 0.50 12.7 0.88 22.4 0.30 7.6
22.5H-.25 22,500 1550 0.25 6.4 0.50 12.7 0.13 3.3
23H-.33 23,000 1590 0.33 8.4 0.61 15.5 0.18 4.6
26H-.20 26,000 1790 0.20 5.1 0.43 10.9 0.07 1.8
26H-.50 26,000 1790 0.50 12.7 0.97 24.6 0.31 7.9
30H-.15 30,000 2070 0.15 3.8 0.37 9.4 0.10 2.5
36H-.33 36,000 2480 0.33 8.4 0.68 17.3 0.18 4.6
36.25H-.20 36,250 2500 0.20 5.1 0.50 12.7 0.09 2.3
40H-.20 40,000 2760 0.20 5.1 0.50 12.7 0.09 2.3
40.6H-.15 40,600 2800 0.15 3.8 0.42 10.7 0.08 2.0
48H-.20 48,000 3310 0.20 5.1 0.57 14.5 0.08 2.0
60H-.20 60,000 4140 0.20 5.1 1.57 39.9 0.08 2.0

All dimensions are for reference only and are subject to change.
Dimensions in parentheses are millimeters (mm). ACC-09
