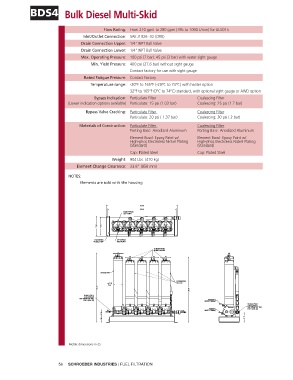

Page 56 - Schroeder - Fuel Filtration

BDS4 Bulk Diesel Multi-Skid

Flow Rating: From 210 gpm to 280 gpm (795 to 1060 L/min) for ULSD15
Inlet/Outlet Connection: SAE J1926 -32 (ORB)
Drain Connection Upper: 1/4" NPT Ball Valve
Drain Connection Lower: 1/4" NPT Ball Valve
Max. Operating Pressure: 100 psi (7 bar); 45 psi (3 bar) with water sight gauge
Min. Yield Pressure: 400 psi (27.6 bar) without sight gauge
Contact factory for use with sight gauge
Rated Fatigue Pressure: Contact Factory
Temperature range: -20°F to 165°F (-29°C to 74°C) with heater option
32ºF to 165ºF (0ºC to 74ºC) standard, with optional sight gauge or AWD option
Bypass Indication: Particulate Filter Coalescing Filter
(Lower indication options available) Particulate: 15 psi (1.03 bar) Coalescing: 25 psi (1.7 bar)
Bypass Valve Cracking: Particulate Filter Coalescing Filter
Particulate: 20 psi ( 1.37 bar) Coalescing: 30 psi ( 2 bar)
Materials of Construction: Particulate Filter Coalescing Filter
Porting Base: Anodized Aluminum Porting Base: Anodized Aluminum
Element Bowl: Epoxy Paint w/ Element Bowl: Epoxy Paint w/
High-phos Electroless Nickel Plating High-phos Electroless Nickel Plating
(Standard) (Standard)
Cap: Plated Steel Cap: Plated Steel
Weight: 904 Lbs. (410 kg)
Element Change Clearance: 33.8” (858 mm)
NOTES:
Elements are sold with the housing

63.00
60.50
DOWN STEAM
TEST POINT
17.50 16.00

4 MOUNTING UP STREAM
HOLES, 5/8" TEST POINT
PUSH BUTTON
BLEED VALVES

PRE-FILTER
COALESCING
7.75 FILTERS
TYP.
61.56 58.11
INTLET PORT:
2-1/2-12UN-2B
SAE STRAIGHT THD.
AUXILIARY
PORT (SAE-32) WATER DRAINS
OUTLET PORT:
2-1/2-12UN-2B
SAE STRAIGHT THD.
PRIMARY PORT (SAE-32)
IN OUT WATER DRAINS
3.00
6.50 9.16
MATERIAL: DEC. TOLERENCE ALL DIMENSIONS IN INCHES [MM]: REV. CARD: 13740 DIMENSIONAL DRAWING THESE DRAWINGS, SPECIFICATIONS, AND THE IDEAS REV. DRAWING NO.
CONTAINED HEREIN ARE THE EXCLUSIVE PROPERTY
2 PL. - + .01 APP. A.SEITZ 1/7/15 REV. DATE: 6/7/16 OF BDS4XXVVM FILTER OF SCHROEDER INDUSTRIES LLC AND ARE 1 D-12801
CONFIDENTIAL. THESE DOCUMENT(S) SHALL NOT BE
COPIED OR REPRODUCED IN PART OR IN FULL AS A
3 PL. - + .001 CHK. A.SEITZ 1/7/15 B/M BASIS OR DESIGN, MANUFACTURED, OR SALE; AND INDUSTRIES LLC
SHALL NOT BE USED IN ANY WAY DETRIMENTAL TO
ANG. + - 1° DWN. E.SCHLEMMER 12/16/14 P/N THE INTEREST OF THIS COMPANY. THEY ARE www.schroederindustries.com SCALE: 1:6 SHT. 1
SUBJECT TO RETURN UPON REQUEST.
Metric di men sions in ( ).
