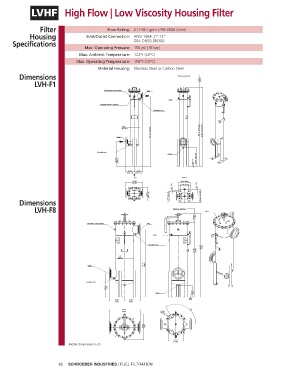

Page 60 - Schroeder - Fuel Filtration

LVHF High Flow | Low Viscosity Housing Filter

Filter Flow Rating: 211-951 gpm (799-3600 L/min)
Housing Inlet/Outlet Connection: ANSI 150#: 2”-12”
Specifications DIN: DN50-DN300
Max. Operating Pressure: 150 psi (10 bar)
Max. Ambient Temperature: 122°F (50°C)
Max. Operating Temperature: 158°F (70°C)
Material Housing: Stainless Steel or Carbon Steel
Dimensions *Element demount 42.12” (1070)
LVH-F1
Connection point (option) Inlet

Drain
Clogging indicator (option)
Sampling port

8.62”
76.14” (1934 ±3) 85.55” (2173 ±10)
(ø219.1) 83.18” (2113 ±5)
Outlet

Sampling port
Drain
26.61” (676 ±3) 0.39” (10) 19.76” (502 ±5)

9.27” 9.27”
(235 ±5) (235 ±5)
A View A
18.50” 12.59” (320)
(470) 8.26” (210)
0.86” (22) 3.14” (80)
15.15” (384 ±10) 10.47” (266 ±5) 13.62” (346 ±5)
Dimensions
LVH-F8 *Element Demount Vent
*43.30˝ (1100)
Connection Point (option) Inlet

Drain

Sampling Port
94.33˝ (2396)
84.44˝ (2145)
20˝
(ø508)
76.14˝ (1934)
Outlet

Sampling Port
26.61˝ (676)
13.03˝
Drain (331)
0.3˝ (12)
17.36˝ 17.36˝
(441) (441)
34.72˝
(882) (3xø 22)
0.86˝
29.33˝ (745)

17.67˝
(ø 449)
Metric di men sions in ( ).
