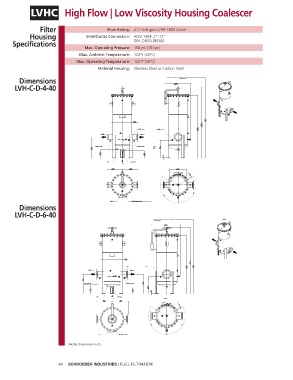

Page 64 - Schroeder - Fuel Filtration

LVHC
LVHC High Flow | Low Viscosity Housing Coalescer

Filter Flow Rating: 211-476 gpm (799-1802 L/min)
Housing Inlet/Outlet Connection: ANSI 150#: 2”-12”
Specifications DIN: DN50-DN300
Max. Operating Pressure: 150 psi (10 bar)
Max. Ambient Temperature: 122°F (50°C)
Max. Operating Temperature: 122°F (50°C)
Material Housing: Stainless Steel or Carbon Steel

Dimensions 33.46” *Element Demount
LVH-C-D-4-40 (850 ±10)

*125.9” (3200)
24.01”
(Ø 610)
90.20” (ca.2291±10)
79.54” (2020 ±5)
Drain
Drain
Outlet Inlet
Sampling Port Inlet Sampling Port Inlet
26.61” (676 ±3) 26.61” (676 ±3) 23.07” (586 ±5)
10.68” (271 ±5) 9.27” (235 ±5) .47” (12)
Drain Outlet Water
A
19.91” 19.91” 20.98”
(505 ±5) (505 ±5) (Ø 553) (3x Ø 22) .86”

120°
120°
Vent Option Clogging Indicator
Dimensions
LVH-C-D-6-40
M (1 : 17)
*Element Demount
40.08”
(1018 ±10)

27.99”
(ø711)
91.10” (~2314 ±10)
80.33” (2040 ±5)
Drain Drain 126.77” (3220*)
Outlet Inlet
26.61” (676 ±3)
Sampling port outlet Sampling port Inlet 26.61” (676 ±3)
23.09” (586 ±5)

10.03 (255 ±5) 8.46” (215 ±5) 0.47” (12)
Drain Outlet water
A View A
22.06” 22.06”
(560 ±5) (560 ±5) 3 x ø 0.86” (22)

1 2 0 °
1 2 0 °
Vent Option clogging indicator
Metric di men sions in ( ).

64 SCHROEDER INDUSTRIES | FUEL FILTRATION
