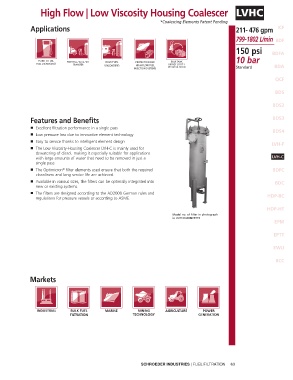

Page 63 - Schroeder - Fuel Filtration

High Flow | Low Viscosity Housing Coalescer LVHC

*Coalescing Elements Patent Pending
Applications 211- 476 gpm ICF

799-1802 L/min BDF

150 psi BDFA
10 bar

Standard BDA

QCF

BDS

BDS2

Features and Benefits BDS3

■ Excellent filtration performance in a single pass
BDS4
■ Low pressure loss due to innovative element technology
■ Easy to service thanks to intelligent element design
LVH-F
■ The Low Viscosity-Housing Coalescer LVH-C is mainly used for
dewatering of diesel, making it especially suitable for applications
LVH-C
with large amounts of water that need to be removed in just a LVH-C
single pass
®
■ The Optimicron filter elements used ensure that both the required BDFC
cleanliness and long service life are achieved.
■ Available in various sizes, the filters can be optimally integrated into BDC
new or existing systems.
■ The filters are designed according to the AD2000 German rules and HDP-BC
regulations for pressure vessels or according to ASME.

HDP-HT
Model no. of filter in photograph
is: LVHCD440NVBTFZ
EPM
EPTT

EWU

BCC

Markets

SCHROEDER INDUSTRIES | FUEL FILTRATION 63
